Product CatalogPart Number
CDHVAF20M0F2500FET
Manufacturer
Vishay TechnoDescription
Thick Film Resistor
Datasheet
DatasheetPackage
2512 (6432 Metric)
In Stock
32,274 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CDHVAF20M0F2500FET
CDHVAF20M0F2500FET
lmages are for reference only.Payment Methods
Delivery Services
20M Ohm ±1% 1W Power Per Element Voltage Divider 2 Resistor Network/Array ±100ppm/°C 2512 (6432 Metric)
Quick Inquiry
CDHVAF20M0F2500FET
Specifications
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | Vishay Techno |
| Series | CDHV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Voltage Divider |
| Resistance (Ohms) | 20M |
| Tolerance | ±1% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | ±1% |
| Resistor-Ratio-Drift | ±50ppm/°C |
| Number of Pins | 3 |
| Power Per Element | 1W |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Grade | - |
| Qualification | - |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Size / Dimension | 0.250" L x 0.126" W (6.35mm x 3.20mm) |
| Height - Seated (Max) | 0.030" (0.76mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

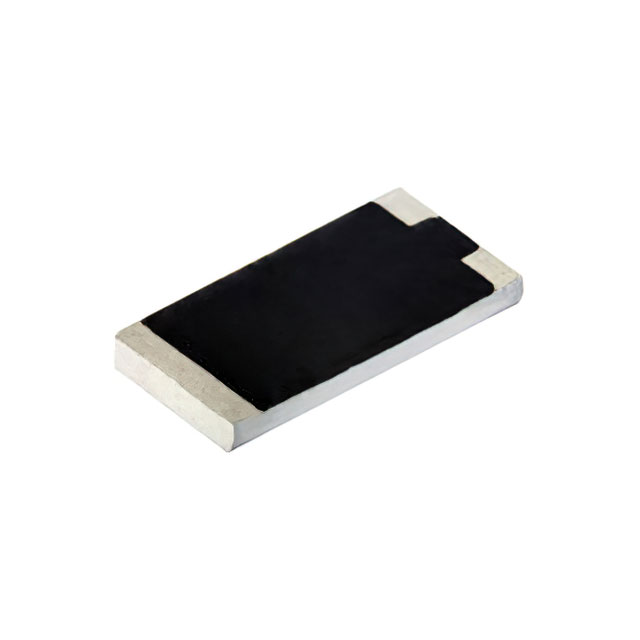

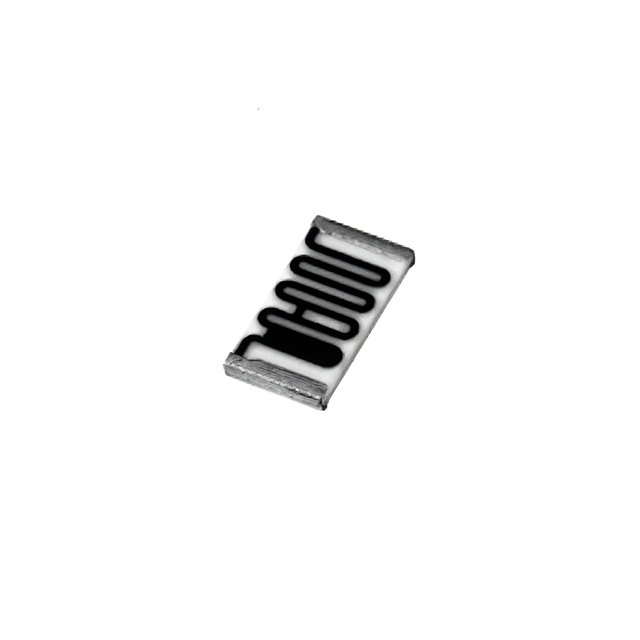

| Part Number | CDHVAF20M0F2500FEF | CDHVAF100MF2500FEF | CDHVAF1G00G5000GEF | CDHVAF1G00G5000GET |
| Manufacturer | Vishay Techno | Vishay Techno | Vishay Techno | Vishay Techno |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CDHV2512, 3-SIDED, SOLDER COATED | CDHV2512, 3-SIDED, SOLDER COATED | CDHV2512, 3-SIDED, SOLDER COATED | Thick Film Resistor |
| Series | CDHV | CDHV | CDHV | CDHV |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
