CDPH45D13FHF-3R3MC

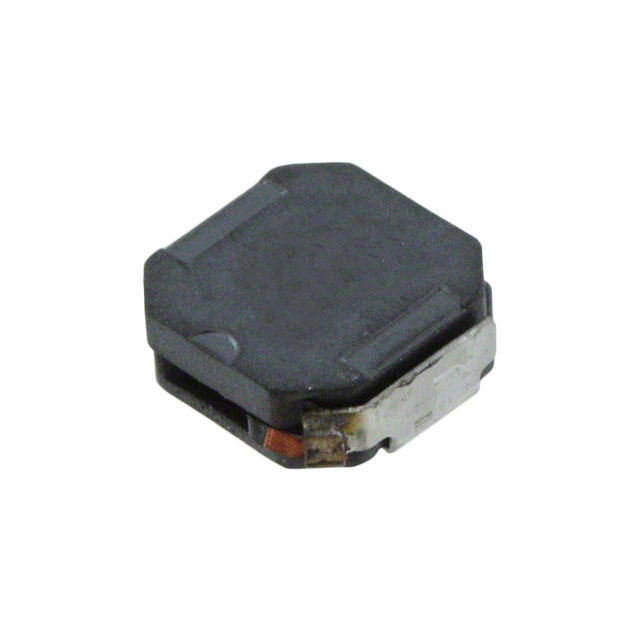

lmages are for reference only.CDPH45D13FHF-3R3MC
FIXED IND 3.3UH 1.8A 96 MOHM SMD
DatasheetNonstandard
68,358 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.3 µH Shielded Inductor 1.8 A 96mOhm Max Nonstandard
CDPH45D13FHF-3R3MC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDPH |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.8 A |
| Current - Saturation (Isat) | 1.76A |
| Shielding | Shielded |
| DC Resistance (DCR) | 96mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.185" L x 0.177" W (4.70mm x 4.50mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|
| Part Number | CDPH45D13FHF-3R3MC | CDPH45D13FHF-100MC | CDPH45D13FHF-220MC | CDPH45D13FHF-4R7MC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 3.3UH 1.8A 96 MOHM SMD | FIXED IND 10UH 1.1A 264 MOHM SMD | FIXED IND 22UH 660MA 644MOHM SMD | FIXED IND 4.7UH 1.46A 146MOHM SM |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
