CDRH10D60BT150NP-2R0NC
lmages are for reference only.CDRH10D60BT150NP-2R0NC
FIXED IND 2UH 10.9A 7.1 MOHM SMD
DatasheetNonstandard
27,910 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 µH Shielded Inductor 10.9 A 7.1mOhm Nonstandard
CDRH10D60BT150NP-2R0NC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDRH10D60B/T150 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 10.9 A |
| Current - Saturation (Isat) | 13.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 7.1mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.406" L x 0.394" W (10.30mm x 10.00mm) |
| Height - Seated (Max) | 0.250" (6.35mm) |
| Base Product Number | - |
| Product Attribute | |
|
|
 |

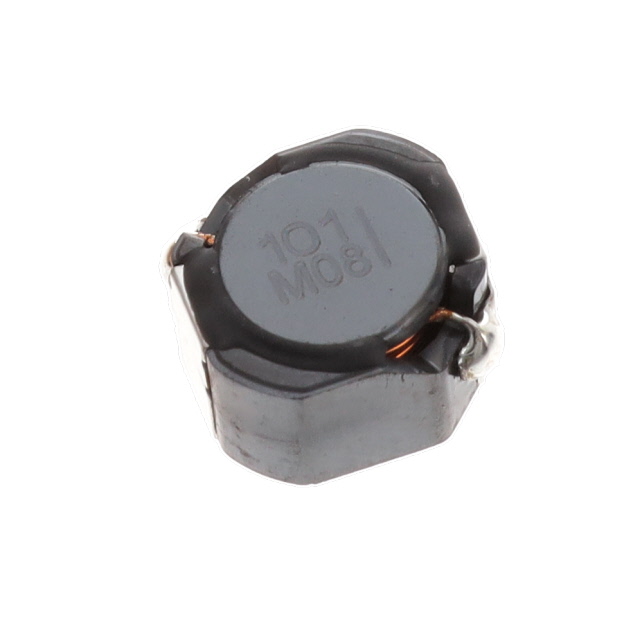

| Part Number | CDRH10D60BT150NP-2R7NC | CDRH10D60BT150NP-2R7NC | CDRH10D60BT150NP-100MC | CDRH10D60BT150NP-101MC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.7UH 10.4A 8.5MOHM SM | FIXED IND 2.7UH 10.4A 8.5MOHM SM | FIXED IND 10UH 6.9A 17 MOHM SMD | FIXED IND 100UH 2.3A 160MOHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
