CDRH125NP-330MC

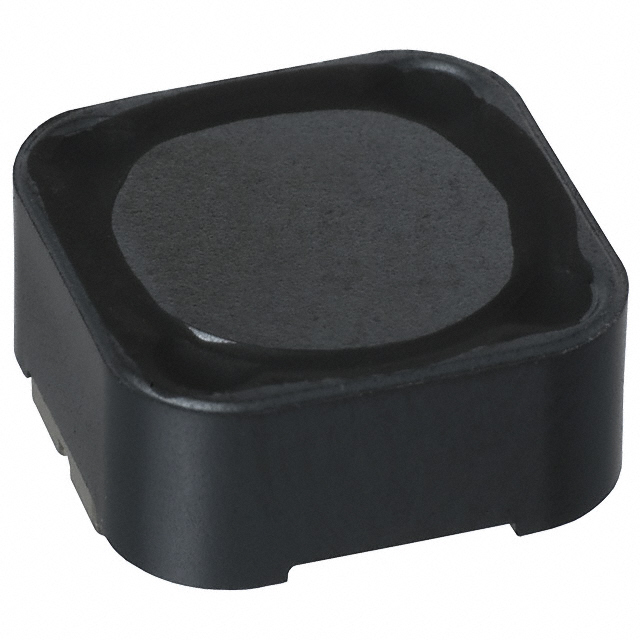

lmages are for reference only.CDRH125NP-330MC
FIXED IND 33UH 2.1A 57 MOHM SMD
DatasheetNonstandard
32,615 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33 µH Shielded Inductor 2.1 A 57mOhm Max Nonstandard
CDRH125NP-330MC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDRH125 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | - |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.1 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 57mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CDRH125NP-331MC | CDRH125NP-100MC | CDRH125NP-101MC | CDRH125NP-102MC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 330UH 680MA 510MOHM SM | FIXED IND 10UH 4A 25 MOHM SMD | FIXED IND 100UH 1.3A 160MOHM SMD | FIXED IND 1MH 400MA 1.53 OHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
