CDRH12D77BT150NP-1R0NC

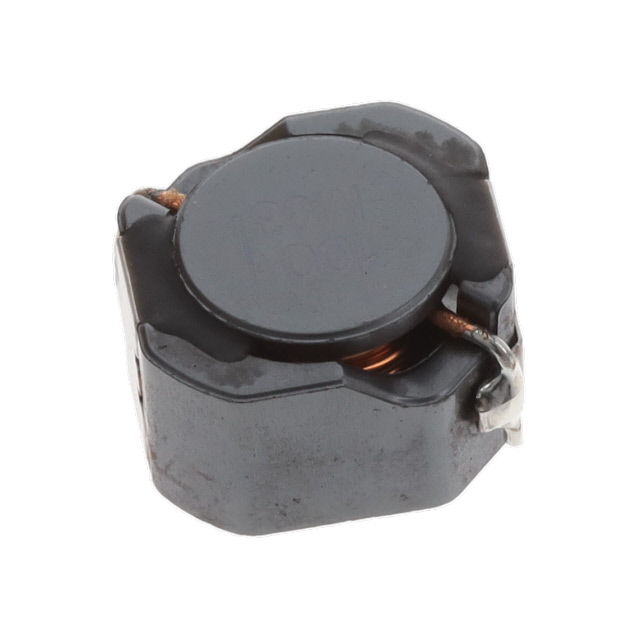

lmages are for reference only.CDRH12D77BT150NP-1R0NC
FIXED IND 1UH 14A 5.85 MOHM SMD
DatasheetNonstandard
31,654 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Shielded Inductor 14 A 5.85mOhm Max Nonstandard
CDRH12D77BT150NP-1R0NC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDRH12D77B/T150 |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 14 A |
| Current - Saturation (Isat) | 31A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.85mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.516" L x 0.504" W (13.10mm x 12.80mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
|
| Part Number | CDRH12D77BT150NP-100MC | CDRH12D77BT150NP-101MC | CDRH12D77BT150NP-101MC | CDRH12D77BT150NP-150MC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 7.5A 19 MOHM SMD | FIXED IND 100UH 2.8A 138MOHM SMD | FIXED IND 100UH 2.8A 138MOHM SMD | FIXED IND 15UH 6.4A 22 MOHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
