CDRH4D16FB/NP-3R0NC

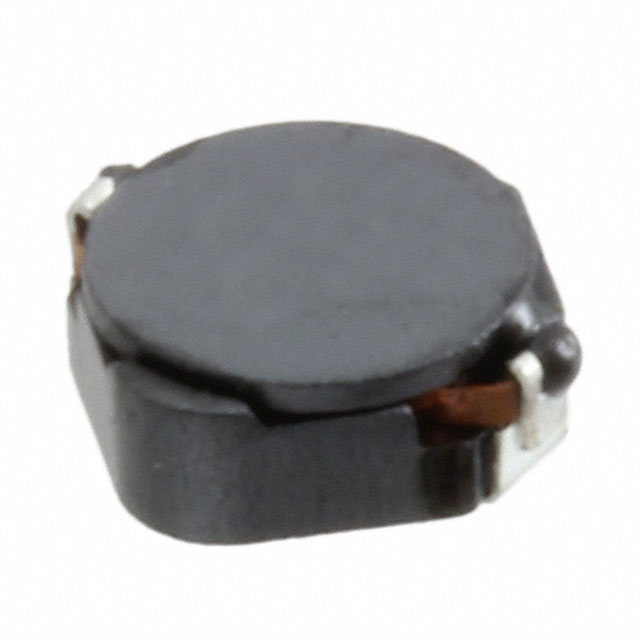

lmages are for reference only.CDRH4D16FB/NP-3R0NC
FIXED IND 3UH 2.4A 39.6 MOHM SMD
DatasheetNonstandard
93,500 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3 µH Shielded Inductor 2.4 A 39.6mOhm Max Nonstandard
CDRH4D16FB/NP-3R0NC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDRH4D16FB |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | - |
| Inductance | 3 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 2.4 A |
| Current - Saturation (Isat) | 1.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 39.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | CDRH4D16FB/NP-3R9NC | CDRH4D16FB/NP-100MC | CDRH4D16FB/NP-150MC | CDRH4D16FB/NP-1R3NC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 3.9UH 2.1A 56.7MOHM SM | FIXED IND 10UH 1.2A 118 MOHM SMD | FIXED IND 15UH 1A 178.8 MOHM SMD | FIXED IND 1.3UH 2.8A 29.3MOHM SM |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
