CDRH4D28NP-120NC

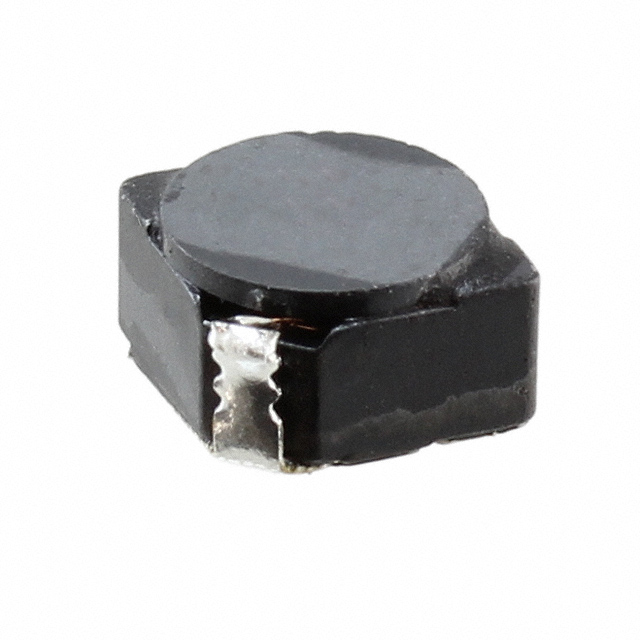

lmages are for reference only.CDRH4D28NP-120NC
FIXED IND 12UH 840MA 131.6 MOHM
DatasheetNonstandard
38,764 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12 µH Shielded Inductor 840 mA 131.6mOhm Max Nonstandard
CDRH4D28NP-120NC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDRH4D28 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 12 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 840 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 131.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.185" L x 0.185" W (4.70mm x 4.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CDRH4D28NP-121NC | CDRH4D28NP-100NC | CDRH4D28NP-101NC | CDRH4D28NP-150NC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 120UH 270MA 1.27OHM SM | FIXED IND 10UH 1A 128.3 MOHM SMD | FIXED IND 100UH 290MA 1.02OHM SM | FIXED IND 15UH 760MA 149MOHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
