CDRH60D45BT150NP-221MC

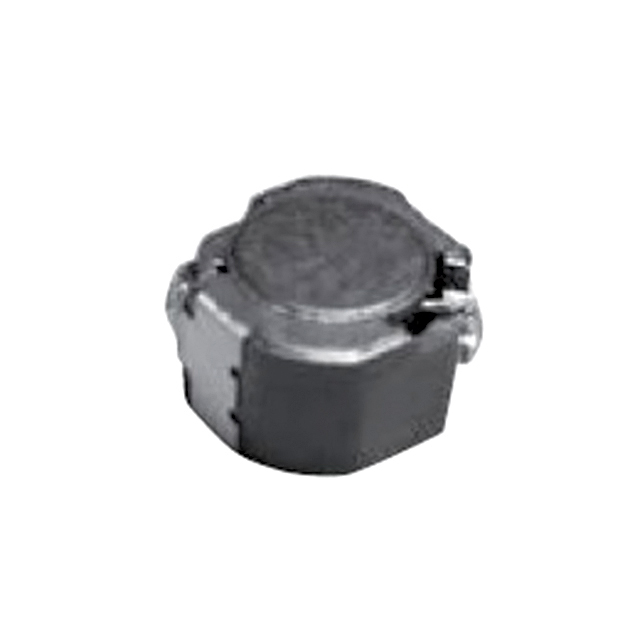

lmages are for reference only.CDRH60D45BT150NP-221MC
FIXED IND 220UH 570MA 864MOHM SM
DatasheetNonstandard
18,229 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220 µH Shielded Inductor 570 mA 864mOhm Nonstandard
CDRH60D45BT150NP-221MC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDRH60D45B/T150 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 570 mA |
| Current - Saturation (Isat) | 620mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 864mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.260" L x 0.248" W (6.60mm x 6.30mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CDRH60D45BT150NP-220MC | CDRH60D45BT150NP-100MC | CDRH60D45BT150NP-101MC | CDRH60D45BT150NP-150MC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 22UH 1.7A 98.4MOHM SMD | FIXED IND 10UH 2.6A 45.6MOHM SMD | FIXED IND 100UH 860MA 340MOHM SM | FIXED IND 15UH 2A 76.8 MOHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
