CDRH70D45BT150NP-470MC

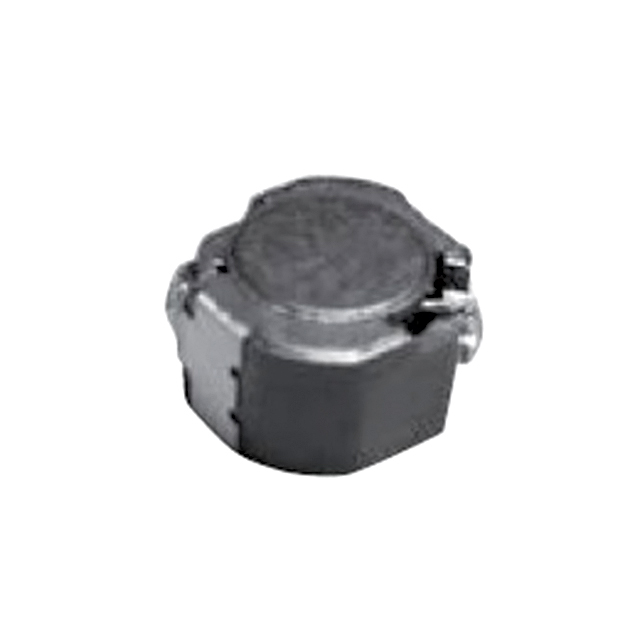

lmages are for reference only.CDRH70D45BT150NP-470MC
FIXED IND 47UH 1.97A 130MOHM SMD
DatasheetNonstandard
47,316 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47 µH Shielded Inductor 1.97 A 130mOhm Nonstandard
CDRH70D45BT150NP-470MC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDRH70D45B/T150 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.97 A |
| Current - Saturation (Isat) | 1.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 130mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.303" L x 0.287" W (7.70mm x 7.30mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CDRH70D45BT150NP-471MC | CDRH70D45BT150NP-100MC | CDRH70D45BT150NP-101MC | CDRH70D45BT150NP-150MC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 470UH 540MA 1.35OHM SM | FIXED IND 10UH 3.8A 33 MOHM SMD | FIXED IND 100UH 1.23A 300MOHM SM | FIXED IND 15UH 3.1A 55 MOHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
