Product CatalogPart Number
CF16191V0T0-NH
Manufacturer
Cvilux USADescription
CONN FFC FPC VERT 19POS 1MM PCB
Datasheet
DatasheetPackage
-
In Stock
65,123 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CF16191V0T0-NH
CF16191V0T0-NH
lmages are for reference only.Payment Methods
Delivery Services
19 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Through Hole
Quick Inquiry
CF16191V0T0-NH
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Cvilux USA |
| Series | CF16 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Through Hole |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 19 |
| Pitch | 0.039" (1.00mm) |
| Termination | Kinked Pin |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.197" (5.00mm) |
| Locking Feature | - |
| Cable End Type | Straight, Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free |
| Actuator Material | - |
| Features | Low Insertion Force (LIF) |
| Voltage Rating | 100V |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | - |
| Housing Color | Natural |
| Actuator Color | - |
| Mating Cycles | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

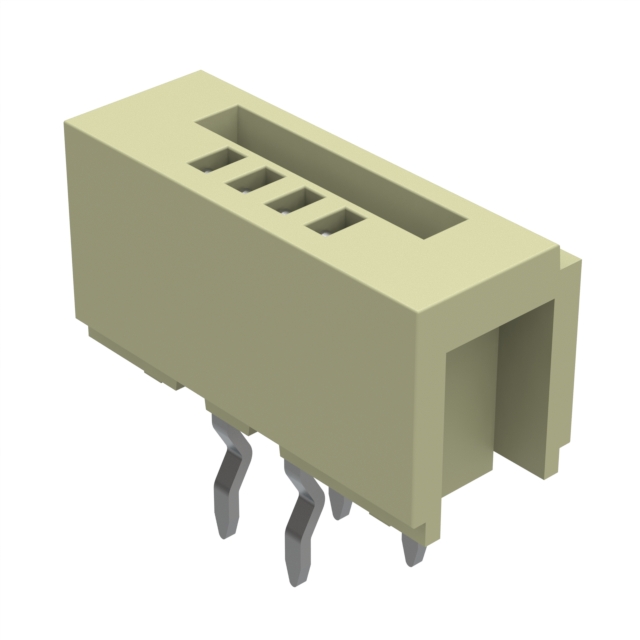

| Part Number | CF16031M0R0-NH | CF16031V0T0-NH | CF16041M0R0-NH | CF16041V0T0-NH |
| Manufacturer | Cvilux USA | Cvilux USA | Cvilux USA | Cvilux USA |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN FFC FPC VERT 3POS 1MM SMD | CONN FFC FPC VERT 3POS 1MM PCB | CONN FFC FPC VERT 4POS 1MM SMD | CONN FFC FPC VERT 4POS 1MM PCB |
| Series | CF16 | CF16 | CF16 | CF16 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
