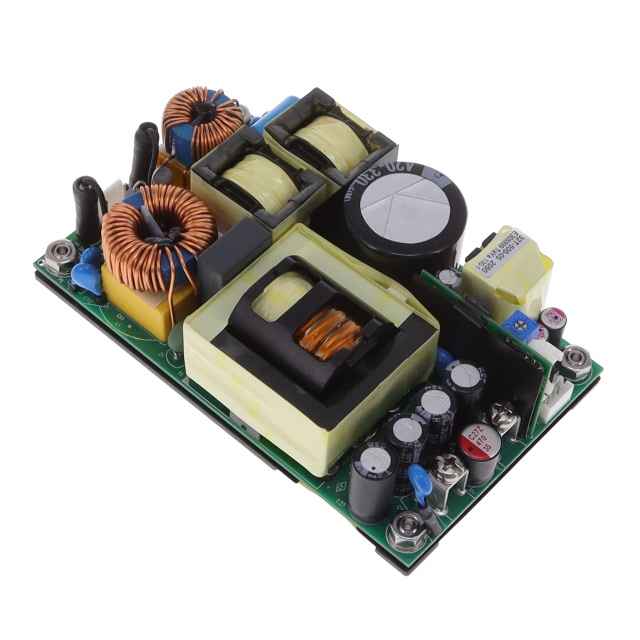

CFM500S120C-PM-R
lmages are for reference only.CFM500S120C-PM-R
AC-DC MODULE CFM500S120C-PM-R WI
Datasheet-
56,427 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Enclosed AC DC Converters 1 Output 12V 80 ~ 264 VAC Input
CFM500S120C-PM-R
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | Cincon Electronics Co. LTD |
| Series | CFM500S (500W) |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 41.67 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 4 kV |
| Efficiency | 92.5% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
| Approval Agency | CE, cURus, DEMKO, FCC, UKCA |
| Minimum Load Required | - |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 330W (500W Forced Air) |
| Features | Adjustable Output, PFC, PMBus™, Remote On/Off, Universal Input |
| Standard Number | 60335-1; 62368-1 |
| Base Product Number | - |
| Current - Output 6 | - |
| Product Attribute |  |
 |
 |
|
| Part Number | CFM500S120C-PC | CFM500S120C-PM | CFM500S120 | CFM500S120-PC |
| Manufacturer | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | Power Supp, Batt, Cond | AC-DC MODULE CFM500S120C-PM WIT | AC/DC CONVERTER 12V 300W | Power Supp, Batt, Cond |
| Series | CFM500S (500W) | CFM500S (500W) | CFM500S (500W) | CFM500S (500W) |
| Packaging | Box | Bag | Box | Box |
