CFV-20636000AZFB

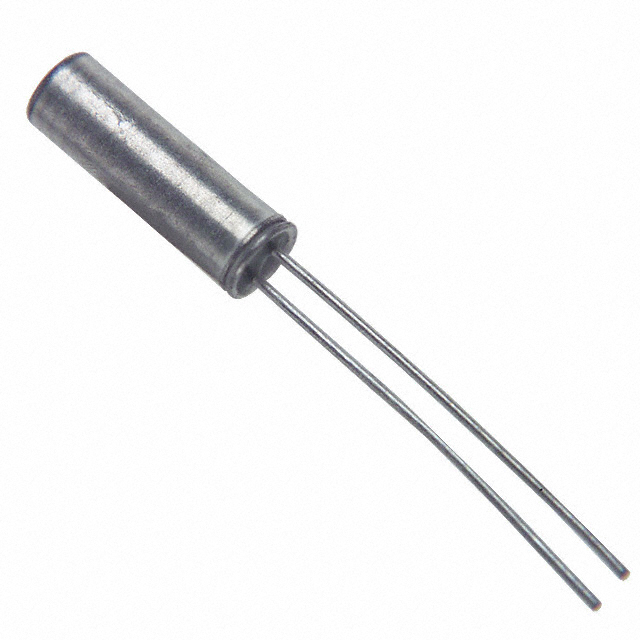

lmages are for reference only.CFV-20636000AZFB
CRYSTAL 36.0000KHZ 12.5PF TH
DatasheetCylindrical Can, Radial
12,162 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
36 kHz ±30ppm Crystal 12.5pF 50 kOhms Cylindrical Can, Radial
CFV-20636000AZFB
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Citizen Finedevice Co Ltd |
| Series | CFV-206 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | kHz Crystal (Tuning Fork) |
| Frequency | 36 kHz |
| Frequency Stability | - |
| Frequency Tolerance | ±30ppm |
| Load Capacitance | 12.5pF |
| ESR (Equivalent Series Resistance) | 50 kOhms |
| Operating Mode | Fundamental |
| Operating Temperature | -20°C ~ 70°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Cylindrical Can, Radial |
| Size / Dimension | 0.075" Dia (1.90mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | CFV-20636000AZFB | CFV-206100000AZFB | CFV-206100000AZFB | CFV-20632000AZFB |
| Manufacturer | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 36.0000KHZ 12.5PF TH | CRYSTAL 100.0000KHZ 12.5PF TH | CRYSTAL 100.0000KHZ 12.5PF TH | CRYSTAL 32.0000KHZ 12.5PF TH |
| Series | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd |
| Packaging | Bulk | Bulk | Bulk | Bulk |
