CGA4F4NP02W152J085AA

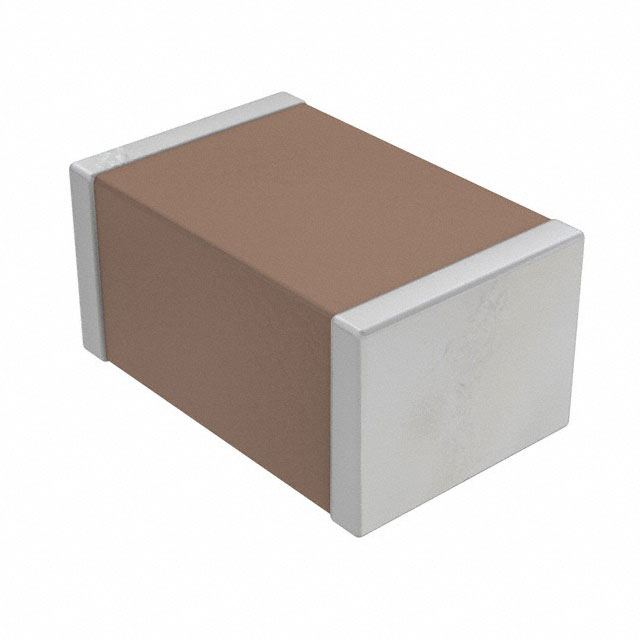

lmages are for reference only.CGA4F4NP02W152J085AA
CAP CER 1500PF 450V NP0 0805
Datasheet0805 (2012 Metric)
29,768 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1500 pF ±5% 450V Ceramic Capacitor C0G, NP0 0805 (2012 Metric)
CGA4F4NP02W152J085AA
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | TDK Corporation |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | TDK Corporation |
| Series | CGA |
| Capacitance | 1500 pF |
| Tolerance | ±5% |
| Voltage - Rated | 450V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 150°C |
| Features | High Temperature |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.039" (1.00mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CGA4F4NP02W182J085AA | CGA4F4NP02W222J085AA | CGA4F1C0G2A153J085AC | CGA4F1C0G2A153J085AE |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 1800PF 450V NP0 0805 | CAP CER 2200PF 450V NP0 0805 | CAP CER 0.015UF 100V C0G 0805 | CAP CER .015UF 100V C0G/NP0 0805 |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
