CGA5C2C0G1H682J060AD

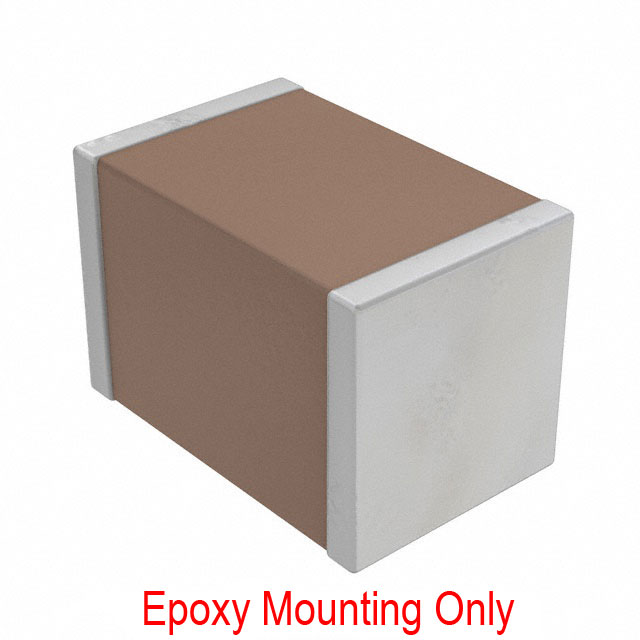

lmages are for reference only.CGA5C2C0G1H682J060AD
CAP CER 6800PF 50V 1206 EPOXY
Datasheet1206 (3216 Metric)
37,736 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6800 pF ±5% 50V Ceramic Capacitor C0G, NP0 1206 (3216 Metric)
CGA5C2C0G1H682J060AD
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | TDK Corporation |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | TDK Corporation |
| Series | CGA |
| Capacitance | 6800 pF |
| Tolerance | ±5% |
| Voltage - Rated | 50V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | Epoxy Mountable |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC, Epoxy |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.030" (0.75mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CGA5C2C0G1H682J060AA | CGA5C2C0G1H103J060AA | CGA5C2C0G1H103J060AD | CGA5C2C0G1H153J060AA |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 6800PF 50V C0G 1206 | CAP CER 10000PF 50V C0G 1206 | CAP CER 10000PF 50V 1206 EPOXY | CAP CER 0.015UF 50V C0G 1206 |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
