CGA8R4NP02J473J320KA
lmages are for reference only.CGA8R4NP02J473J320KA
CAP CER 0.047UF 630V NP0 1812
Datasheet1812 (4532 Metric)
51,806 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.047 µF ±5% 630V Ceramic Capacitor C0G, NP0 1812 (4532 Metric)
CGA8R4NP02J473J320KA
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | TDK Corporation |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | TDK Corporation |
| Series | CGA |
| Capacitance | 0.047 µF |
| Tolerance | ±5% |
| Voltage - Rated | 630V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 150°C |
| Features | High Temperature |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.138" (3.50mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

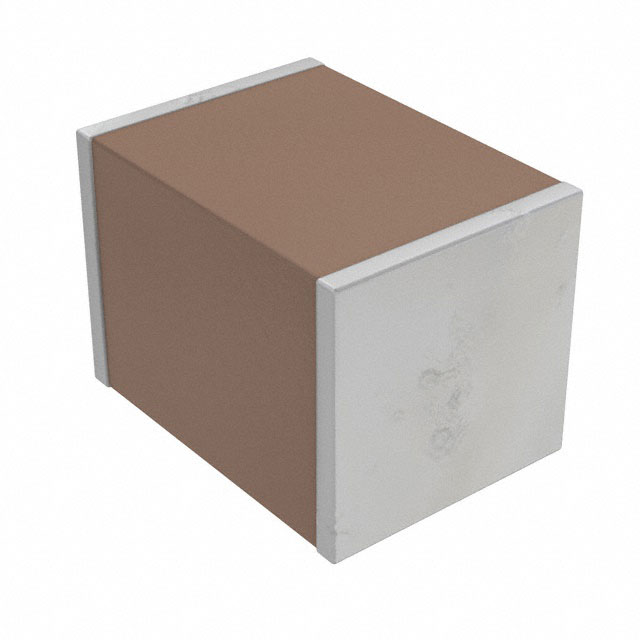

| Part Number | CGA8R4NP02E104J320KN | CGA8R4NP02W683J320KA | CGA8R2C0G1H224J320KA | CGA8R2C0G2A104J320KA |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 0.1UF 250V NP0 1812 | CAP CER 0.068UF 450V NP0 1812 | CAP CER 0.22UF 50V C0G 1812 | CAP CER 0.1UF 100V C0G 1812 |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
