CGB3B1JB1C225M055AC

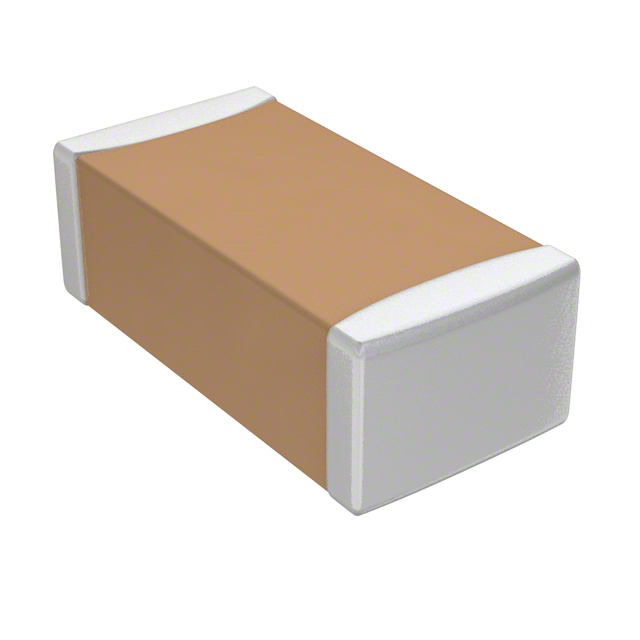

lmages are for reference only.CGB3B1JB1C225M055AC
CAP CER 2.2UF 16V JB 0603
Datasheet0603 (1608 Metric)
78,431 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µF ±20% 16V Ceramic Capacitor JB 0603 (1608 Metric)
CGB3B1JB1C225M055AC
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | TDK Corporation |
| Series | CGB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16V |
| Temperature Coefficient | JB |
| Operating Temperature | -25°C ~ 85°C |
| Features | Low Profile |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Thickness (Max) | 0.022" (0.55mm) |
| Lead Spacing | - |
| Lead Style | - |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CGB3B1JB1C225K055AC | CGB3B1JB1A475K055AC | CGB3B1JB1A475M055AC | CGB3B1JB1E105K055AC |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 2.2UF 16V JB 0603 | CAP CER 4.7UF 10V JB 0603 | CAP CER 4.7UF 10V JB 0603 | CAP CER 1UF 25V JB 0603 |
| Series | TDK Corporation | |||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
