CGR104U012W5C
lmages are for reference only.CGR104U012W5C
CAP ALUM 100000UF 12V SCREW CHAS
DatasheetRadial, Can - Screw Terminals
70,131 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100000 µF 12 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 4.3mOhm @ 120Hz 2000 Hrs @ 105°C
CGR104U012W5C
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | CGR |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 100000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 12 V |
| ESR (Equivalent Series Resistance) | 4.3mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 A @ 120 Hz |
| Ripple Current @ High Frequency | 34.5 A @ 10 kHz |
| Lead Spacing | - |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.125" (130.18mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

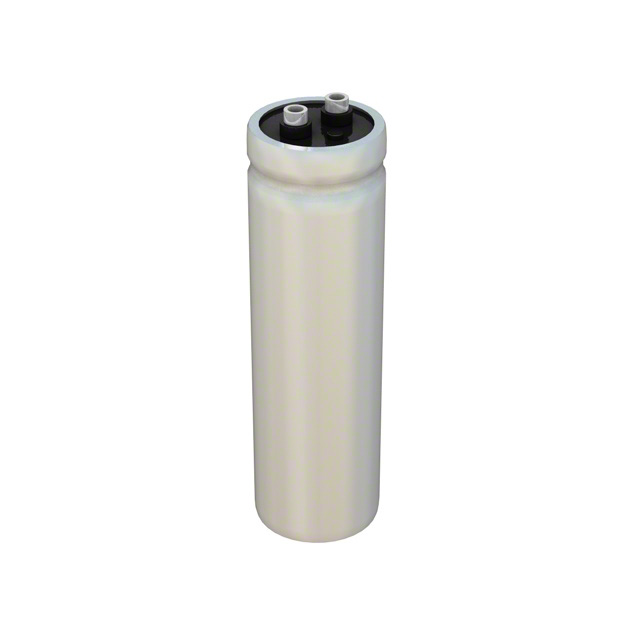

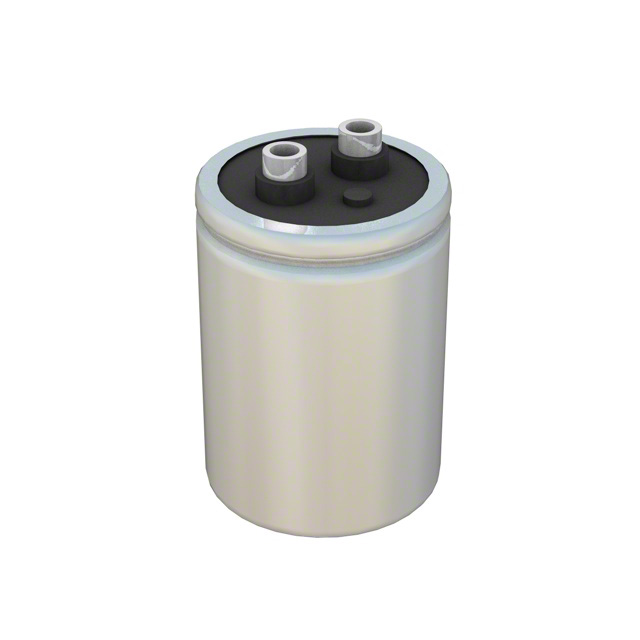

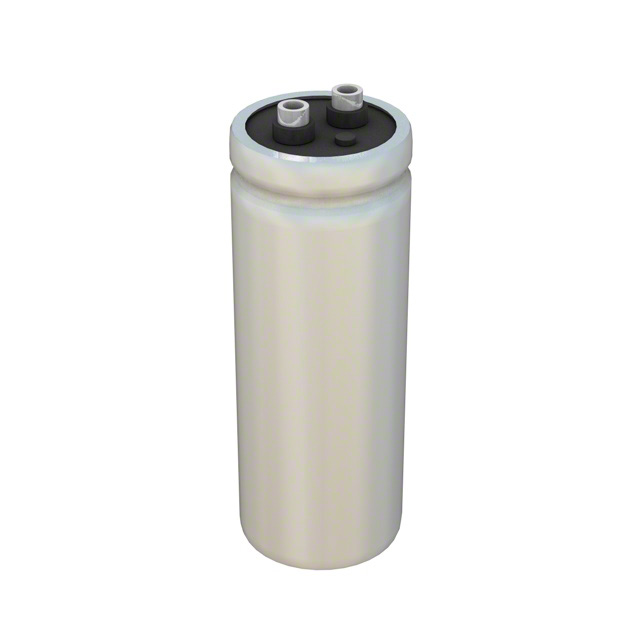

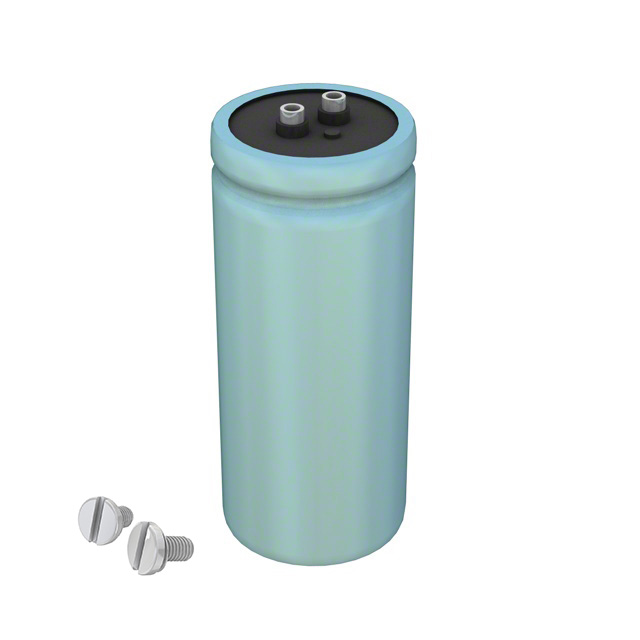

| Part Number | CGR102U050R1N | CGR103U020R3L | CGR103U030R4L | CGR103U050V4C |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 1000UF 50V SCREW CHAS M | CAP ALUM 10000UF 20V SCREW CHAS | CAP ALUM 10000UF 30V SCREW CHAS | CAP ALUM 10000UF 50V SCREW CHAS |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
