CGS103U035V2C
lmages are for reference only.CGS103U035V2C
CAP ALUM 10000UF 35V SCREW CHAS
DatasheetRadial, Can - Screw Terminals
28,010 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 38mOhm @ 120Hz 2000 Hrs @ 85°C
CGS103U035V2C
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | CGS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 38mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.15 A @ 10 kHz |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 2.125" (53.98mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

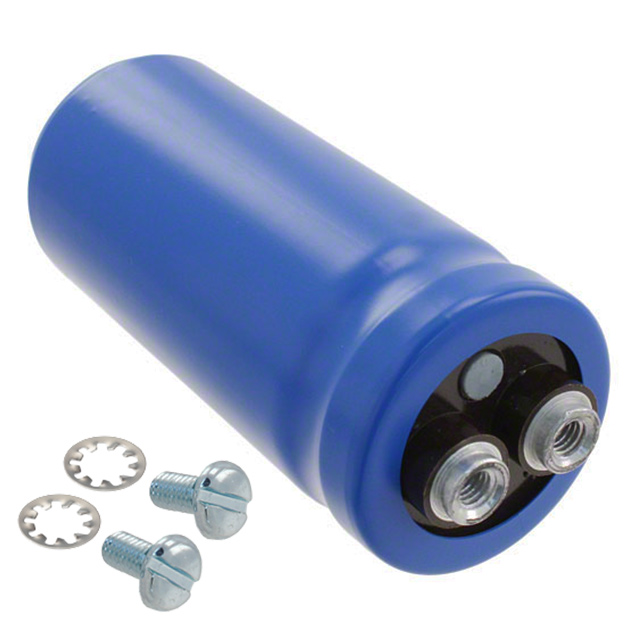

| Part Number | CGS103U016R2C | CGS103U016R3C | CGS103U025R3C | CGS103U050R4C |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 10000UF 16V SCREW CHAS | CAP ALUM 10000UF 16V SCREW CHAS | CAP ALUM 10000UF 25V SCREW CHAS | CAP ALUM 10000UF 50V SCREW CHAS |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
