CGS383U016V3C

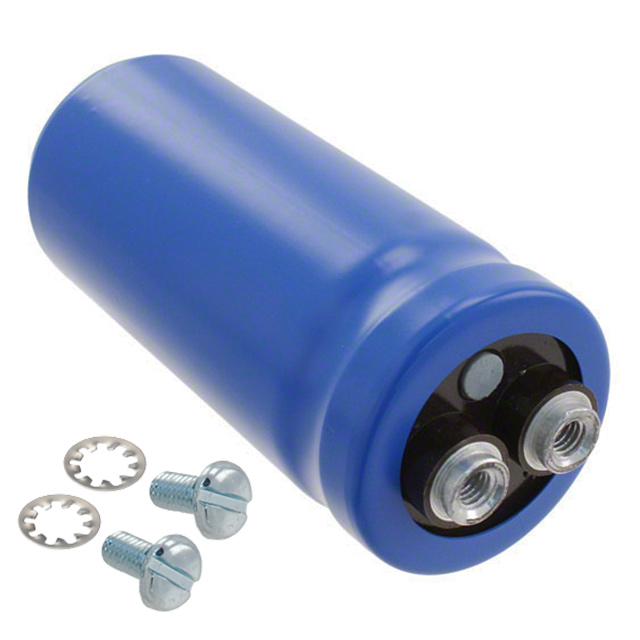

lmages are for reference only.CGS383U016V3C
CAP ALUM 38000UF 16V SCREW CHAS
DatasheetRadial, Can - Screw Terminals
85,522 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
38000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 21mOhm @ 120Hz 2000 Hrs @ 85°C
CGS383U016V3C
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | CGS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 38000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 21mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.18 A @ 10 kHz |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CGS383U016R3C | CGS035M100D06PE50V00R | CGS035M101F10PE50V00A | CGS101T450R2C |
| Manufacturer | Cornell Dubilier Knowles | Suscon | Suscon | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | CAP ALUM 38000UF 16V SCREW CHAS | CAP ALUM 10UF 20% 35V SMD | CAP ALUM 100UF 20% 35V SMD | CAP ALUM 100UF 450V SCREW CHAS M |
| Series | Cornell Dubilier Knowles | Suscon | Suscon | Cornell Dubilier Knowles |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
