CGS563U050X3L
lmages are for reference only.CGS563U050X3L
CAP ALUM 56000UF 50V SCREW CHAS
DatasheetRadial, Can - Screw Terminals
50,995 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
56000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5mOhm @ 120Hz 2000 Hrs @ 85°C
CGS563U050X3L
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | CGS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 56000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 5mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 23.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 30.03 A @ 10 kHz |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 3.625" (92.08mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

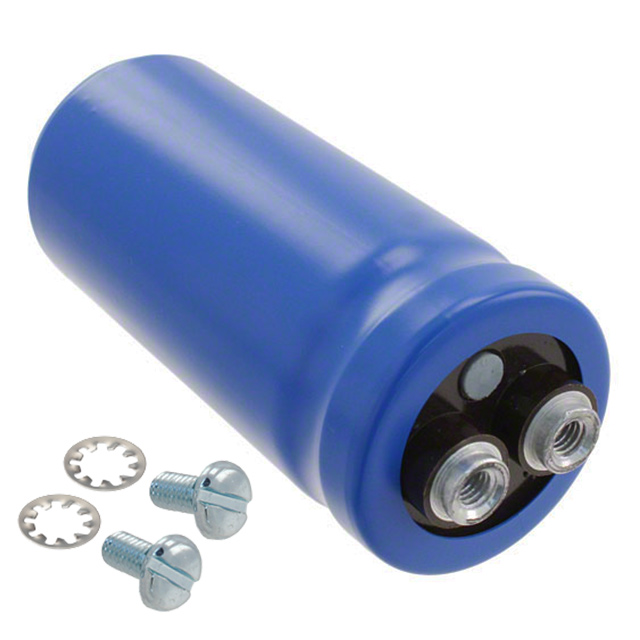

| Part Number | CGS035M100D06PE50V00R | CGS035M101F10PE50V00A | CGS101T450R2C | CGS102T200R4C |
| Manufacturer | Suscon | Suscon | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 10UF 20% 35V SMD | CAP ALUM 100UF 20% 35V SMD | CAP ALUM 100UF 450V SCREW CHAS M | CAP ALUM 1000UF 200V SCREW CHAS |
| Series | Suscon | Suscon | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Bulk |
