CH3R6105VF-ZJ
lmages are for reference only.CH3R6105VF-ZJ
CAP 1.0F -20% +80% 3.6V T/V
DatasheetAxial, Can - Vertical
40,504 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 F (EDLC) Supercapacitor 3.6 V Axial, Can - Vertical 2000 Hrs @ 85°C
CH3R6105VF-ZJ
| Category | Capacitors - Electric Double Layer Capacitors EDLC-Supercapacitors - |
| Manufacturer | CDA (Zhifengwei Technology) |
| Series | CH |
| Packaging | Box |
| RoHS Status | Request inventory verification |
| Capacitance | 1 F |
| Tolerance | -20%, +80% |
| Voltage - Rated | 3.6 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Termination | PC Pins |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can - Vertical |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.748" Dia (19.00mm) |
| Height - Seated (Max) | 0.807" (20.50mm) |
| Operating Temperature | -25°C ~ 85°C |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

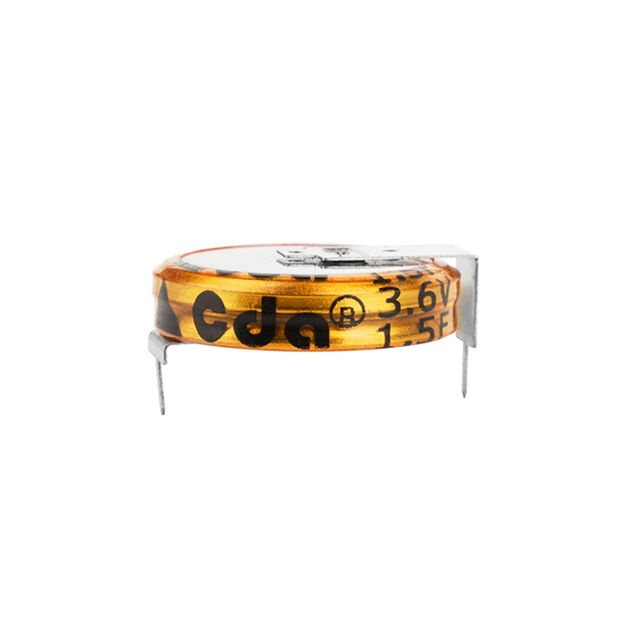

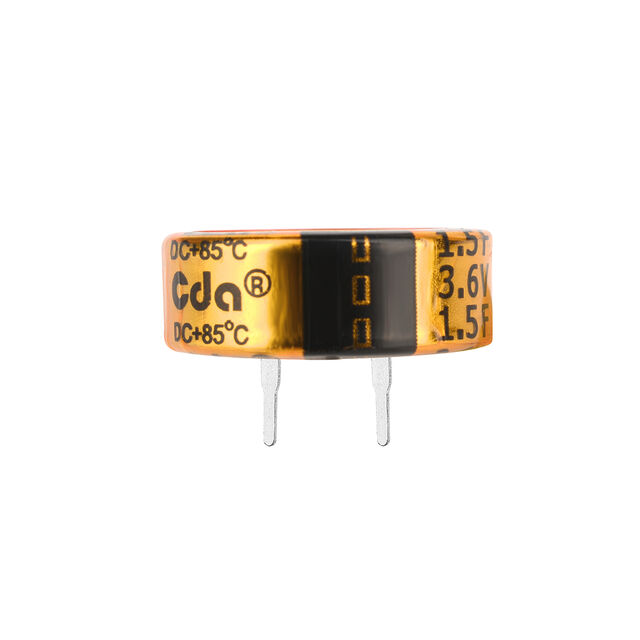

| Part Number | CH3R6105CF-ZJ | CH3R6105HF-ZJ | CH3R6155CF-ZJ | EEC-HW0D226 |
| Manufacturer | CDA (Zhifengwei Technology) | CDA (Zhifengwei Technology) | CDA (Zhifengwei Technology) | Panasonic Electronic Components |
| RoHS Status | Request inventory verification | Request inventory verification | Request inventory verification | RoHS Compliant |
| Description | CAP 1.0F -20% +80% 3.6V T/C | CAP 1.0F -20% +80% 3.6V T/H | CAP 1.5F -20% +80% 3.6V T/C | CAP 22F -20% +40% 2.3V T/H |
| Series | CH | CH | CH | HW |
| Packaging | Box | Box | Box | Bulk |
