CHB200W-24S15N-C

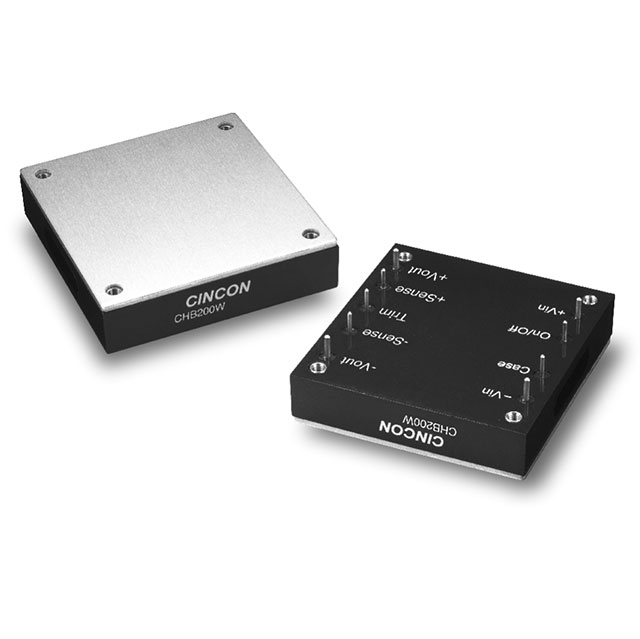

lmages are for reference only.CHB200W-24S15N-C
BRICK DC-DC I/P:10-36VDC O/P:15V
DatasheetHalf Brick
77,503 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 13.3A 10V - 36V Input
CHB200W-24S15N-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Cincon Electronics Co. LTD |
| Series | CHB200W (200W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 13.3A |
| Power (Watts) | 200 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 87% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm) |
| Supplier Device Package | Half Brick |
| Control Features | Enable, Active Low |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | CHB200W-24S15 | CHB200W-24S15N | CHB200W-24S05 | CHB200W-24S05N |
| Manufacturer | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 15V 200W | DC DC CONVERTER 15V 200W | DC DC CONVERTER 5V 200W | DC DC CONVERTER 5V 200W |
| Series | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| Packaging | Tray | Tray | Tray | Tray |
