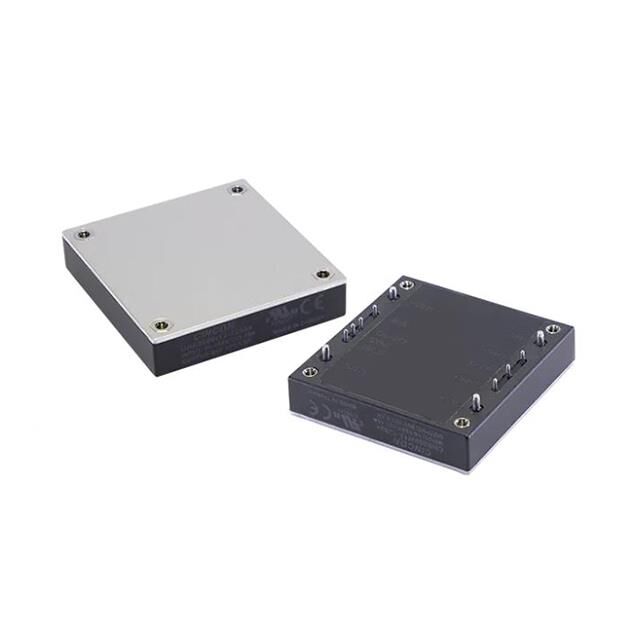

CHB200W12-72S24-CMFD
lmages are for reference only.CHB200W12-72S24-CMFD
CHASSIS MOUNT, 200W, 12:1 14-160
Datasheet-
35,481 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Enclosed DC DC Converter 1 Output 24V 8.4A 160V Input
CHB200W12-72S24-CMFD
| Category | Power Supplies - External/Internal (Off-Board) - DC DC Converters - |
| Manufacturer | Cincon Electronics Co. LTD |
| Series | CHB200W12-72S CMFD (200W) |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Type | Enclosed |
| Voltage - Input (Min) | 14V |
| Voltage - Input (Max) | 160V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8.4A |
| Power (Watts) | 200W |
| Voltage - Isolation | 4.2 kV |
| Applications | ITE (Commercial), Railway |
| Efficiency | 88% |
| Operating Temperature | -40°C ~ 95°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.98" L x 3.09" W x 1.56" H (177.3mm x 78.5mm x 39.6mm) |
| Approval Agency | CE, UKCA |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CHB200W12-72S24-CMFD+HS | CHB200W12-72S24N-CMFD | CHB200W12-72S24N-CMFD+HS | CHB200W12-72S12-CMFD |
| Manufacturer | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CHASSIS MOUNT, 200W, 12:1 14-160 | CHASSIS MOUNT, 200W, 12:1 14-160 | CHASSIS MOUNT, 200W, 12:1 14-160 | CHASSIS MOUNT, 200W, 12:1 14-160 |
| Series | CHB200W12-72S CMFD (200W) | CHB200W12-72S CMFD (200W) | CHB200W12-72S CMFD (200W) | CHB200W12-72S CMFD (200W) |
| Packaging | Bulk | Bag | Bulk | Bag |
