CHB200W12-72S24

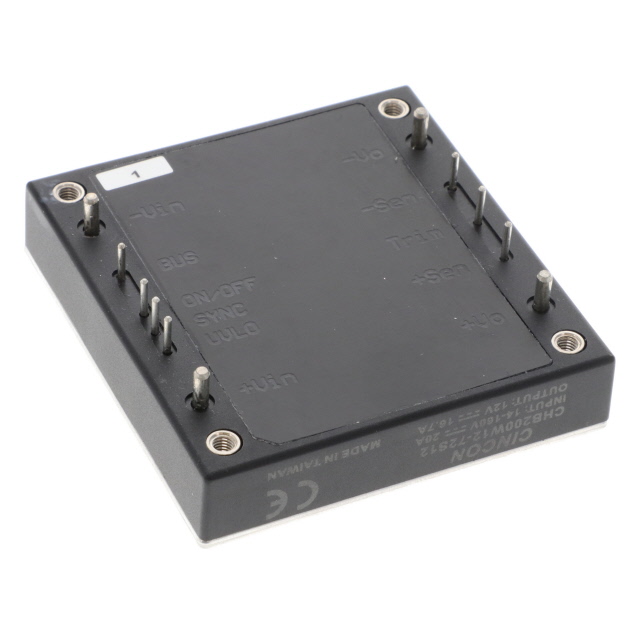

lmages are for reference only.CHB200W12-72S24
DC DC CONVERTER 24V 200W
DatasheetHalf Brick
72,015 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 8.4A 14V - 160V Input
CHB200W12-72S24
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Cincon Electronics Co. LTD |
| Series | CHB200W12 (200W) |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 14V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8.4A |
| Power (Watts) | 200 W |
| Applications | ITE (Commercial), Railway |
| Features | Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Supplier Device Package | Half Brick |
| Control Features | Enable, Active High |
| Approval Agency | CB, CE, cURus |
| Standard Number | 50155; 62368-1 |
| Base Product Number | CHB200 |
| Voltage - Isolation | 3 kV |
| Product Attribute | |
 |
 |
 |
| Part Number | CHB200W12-72S24 | CHB200W12-72S24N | CHB200W12-72S12 | CHB200W12-72S12N |
| Manufacturer | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 24V 200W | DC DC CONVERTER 24V 200W | DC DC CONVERTER 12V 200W | DC DC CONVERTER 12V 200W |
| Series | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| Packaging | Box | Box | Box | Box |
