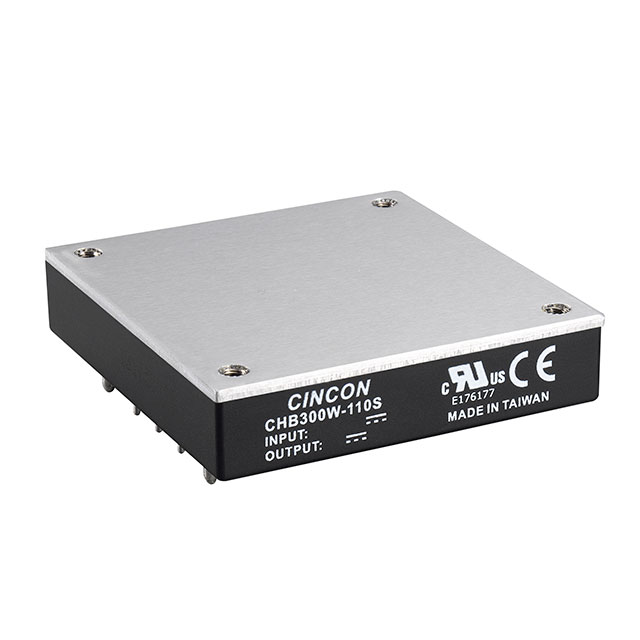

CHB300W-110S28N-C
lmages are for reference only.CHB300W-110S28N-C
RAILWAY BRICK DC-DC I/P: 43-160V
DatasheetHalf Brick
96,026 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 28V 10.7A 43V - 160V Input
CHB300W-110S28N-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Cincon Electronics Co. LTD |
| Series | CHB300W-110S (300W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 43V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10.7A |
| Power (Watts) | 300 W |
| Applications | ITE (Commercial), Railway |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 89% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Supplier Device Package | Half Brick |
| Control Features | Enable, Active Low |
| Approval Agency | CB, CE, cURus |
| Standard Number | 60950-1; 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
|
 |
 |
| Part Number | CHB300W-110S28 | CHB300W-110S28-C | CHB300W-110S28N | CHB300W-110S05 |
| Manufacturer | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 28V 300W | RAILWAY BRICK DC-DC I/P: 43-160V | DC DC CONVERTER 28V 300W | DC DC CONVERTER 5V 300W |
| Series | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| Packaging | Tray | Tray | Tray | Tray |
