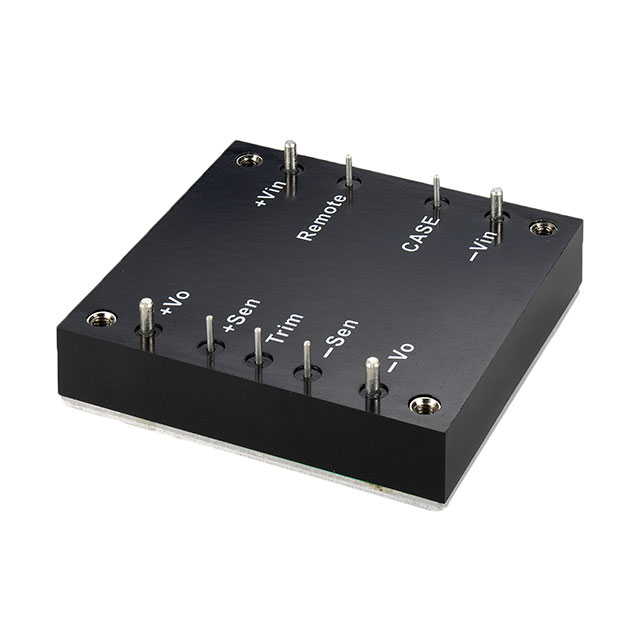

CHB350-48S48N-I
lmages are for reference only.CHB350-48S48N-I
BRICK DC-DC I/P:36-75VDC O/P:48V
DatasheetHalf Brick
54,250 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 48V 7.3A 36V - 75V Input
CHB350-48S48N-I
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Cincon Electronics Co. LTD |
| Series | CHB350 (350W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 7.3A |
| Power (Watts) | 350 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 92% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm) |
| Supplier Device Package | Half Brick |
| Control Features | Enable, Active Low |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute | |
 |
|
|
| Part Number | CHB350-48S48N-C | CHB350-48S48 | CHB350-48S48-C | CHB350-48S48-I |
| Manufacturer | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRICK DC-DC I/P:36-75VDC O/P:48V | DC DC CONVERTER 48V 350W | BRICK DC-DC I/P:36-75VDC O/P:48V | BRICK DC-DC I/P:36-75VDC O/P:48V |
| Series | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| Packaging | Tray | Box | Tray | Tray |
