CIGW201610GLR47MLE
lmages are for reference only.CIGW201610GLR47MLE
FIXED IND 470NH 5.3A 26MOHM SMD
Datasheet0806 (2016 Metric)
96,436 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 nH Shielded Drum Core, Wirewound Inductor 5.3 A 26mOhm Max 0806 (2016 Metric)
CIGW201610GLR47MLE
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Samsung Electro-Mechanics |
| Series | CIGW |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.3 A |
| Current - Saturation (Isat) | 5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 26mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

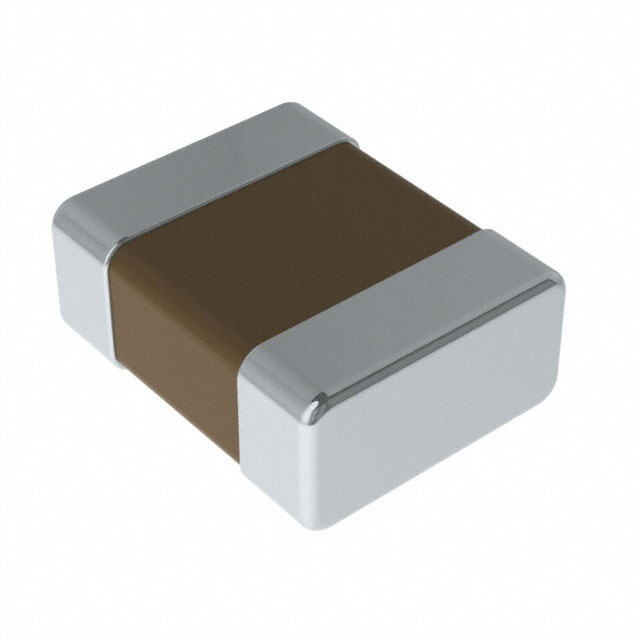

| Part Number | CIGW201610GLR47MLE | CIGW201610GL1R0MLE | CIGW201610GL1R0MLE | CIGW201610GL4R7MLE |
| Manufacturer | Samsung Electro-Mechanics | Samsung Electro-Mechanics | Samsung Electro-Mechanics | Samsung Electro-Mechanics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 470NH 5.3A 26MOHM SMD | FIXED IND 1UH 3.4A 49 MOHM SMD | FIXED IND 1UH 3.4A 49 MOHM SMD | FIXED IND 4.7UH 1.4A 240MOHM SMD |
| Series | Samsung Electro-Mechanics | Samsung Electro-Mechanics | Samsung Electro-Mechanics | Samsung Electro-Mechanics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
