CL05B223KA5NNWC
lmages are for reference only.CL05B223KA5NNWC
CAP CER 0.022UF 25V X7R 0402
Datasheet0402 (1005 Metric)
97,387 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.022 µF ±10% 25V Ceramic Capacitor X7R 0402 (1005 Metric)
CL05B223KA5NNWC
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Samsung Electro-Mechanics |
| Series | CL |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.022 µF |
| Tolerance | ±10% |
| Voltage - Rated | 25V |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | - |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.022" (0.55mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

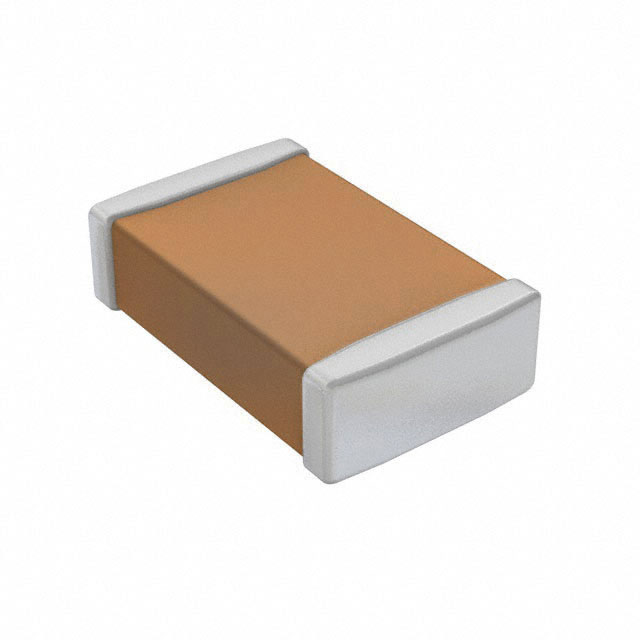

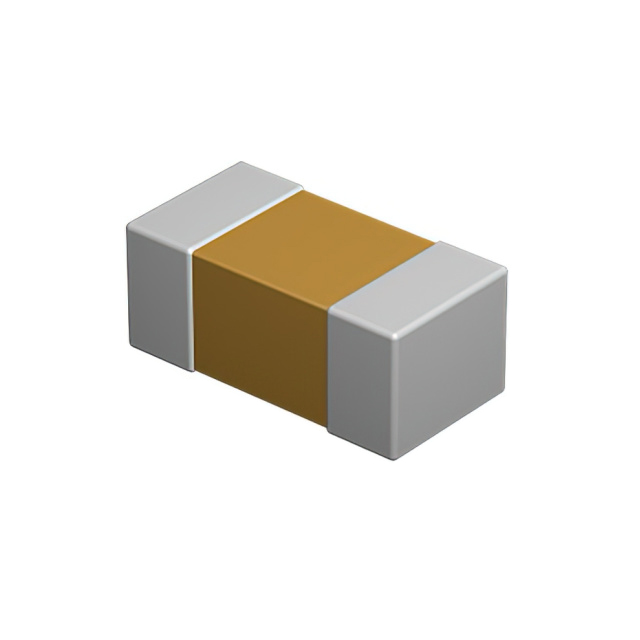

| Part Number | CL05B223KA5NNNC | CL05B223KA5VPNC | CL05B223KB5NNNC | CL05B223KB5NNWC |
| Manufacturer | Samsung Electro-Mechanics | Samsung Electro-Mechanics | Samsung Electro-Mechanics | Samsung Electro-Mechanics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 0.022UF 25V X7R 0402 | CAP CER 0.022UF 25V X7R 0402 | CAP CER 0.022UF 50V X7R 0402 | CAP CER 0.022UF 50V X7R 0402 |
| Series | Samsung Electro-Mechanics | |||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
