CLA50E1200TC-TRL
lmages are for reference only.Payment Methods
Delivery Services
SCR 1.2 kV 79 A Standard Recovery Surface Mount TO-268AA
CLA50E1200TC-TRL
| Category | Discrete Semiconductor Products - Thyristors - SCRs |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Voltage - Off State | 1.2 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - On State (It (AV)) (Max) | 50 A |
| Current - Hold (Ih) (Max) | 75 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 595A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 150°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268AA |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - On State (It (RMS)) (Max) | 79 A |
| Current - Off State (Max) | 50 µA |
| Base Product Number | CLA50 |
| Product Attribute |  |
 |
 |
|

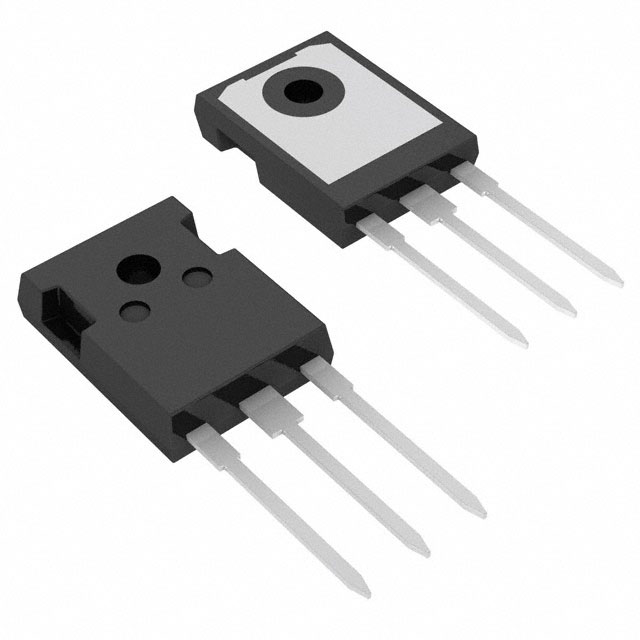

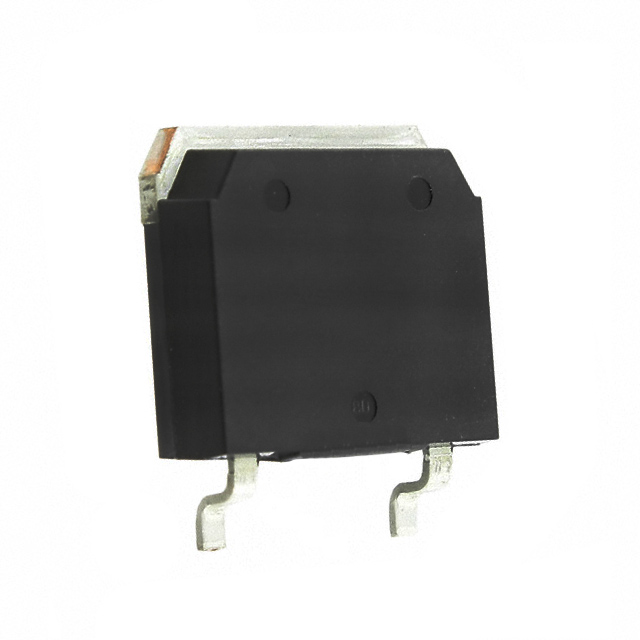

| Part Number | CLA50E1200HB | CLA50E1200TC-TUB | CPS041-CS92D-CT20 | C430B |
| Manufacturer | IXYS | IXYS | Central Semiconductor Corp | Powerex Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SCR 1.2KV 79A TO247AD | SCR 1.2KV 80A TO268AA | SCR 400V 800MA DIE | SCR 200V 650A TO200AB |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tray | Bulk |
