CLL4626 BK TIN/LEAD

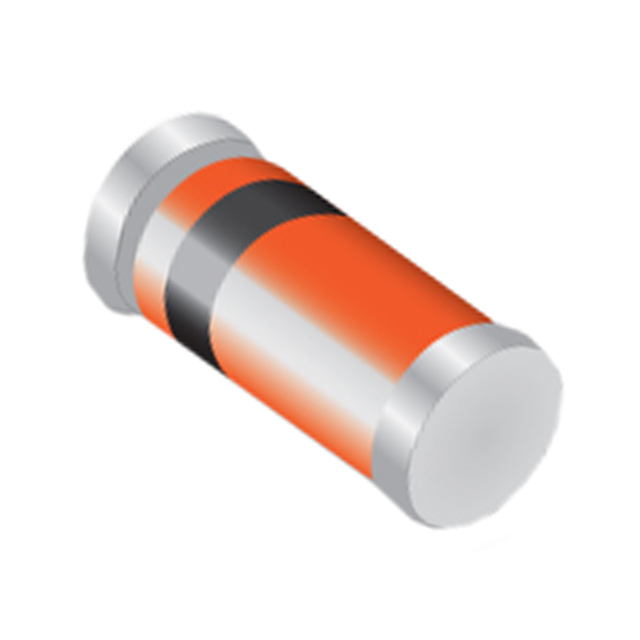

lmages are for reference only.CLL4626 BK TIN/LEAD
DIODE ZENER 5.6V 500MW SOD80
DatasheetDO-213AC, MINI-MELF, SOD-80
30,800 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 5.6 V 500 mW ±5% Surface Mount SOD-80
CLL4626 BK TIN/LEAD
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Box |
| RoHS Status | RoHS non-compliant |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| Tolerance | ±5% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 1400 Ohms |
| Current - Reverse Leakage @ Vr | 10 µA @ 4 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | SOD-80 |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CLL4626 BK | CLL4104 BK | CLL4104 BK TIN/LEAD | CLL4104 TR |
| Manufacturer | Central Semiconductor Corp | Central Semiconductor Corp | Central Semiconductor Corp | Central Semiconductor Corp |
| RoHS Status | RoHS non-compliant | |||
| Description | DIODE ZENER 5.6V 500MW SOD80 | DIODE ZENER 10V 500MW SOD80 | DIODE ZENER 10V 500MW SOD80 | DIODE ZENER 10V 500MW SOD80 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Box | Tape & Reel (TR) |
