Product CatalogPart Number
CM100505-1N0DL
Manufacturer
Bourns Inc.Description
FIXED IND 1NH 400MA 50 MOHM SMD
Datasheet
DatasheetPackage
0402 (1005 Metric)
In Stock
47,944 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CM100505-1N0DL
CM100505-1N0DL
lmages are for reference only.Payment Methods
Delivery Services
1 nH Unshielded Drum Core, Wirewound Inductor 400 mA 50mOhm Max 0402 (1005 Metric)
Quick Inquiry
CM100505-1N0DL
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | CM100505 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Alumina |
| Inductance | 1 nH |
| Tolerance | ±0.3nH |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 50mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | CM100505 |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
|
| Part Number | CM100505-1N0DL | CM100505-10NJL | CM100505-12NJL | CM100505-15NJL |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1NH 400MA 50 MOHM SMD | FIXED IND 10NH 320MA 410MOHM SMD | FIXED IND 12NH 320MA 450MOHM SMD | FIXED IND 15NH 240MA 600MOHM SMD |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
CM100505-10NJL
Bourns Inc.
CM100505-12NJL
Bourns Inc.
CM100505-15NJL
Bourns Inc.
CM100505-18NJL
Bourns Inc.
CM100505-18NJL
Bourns Inc.
CM100505-1N0DL
Bourns Inc.

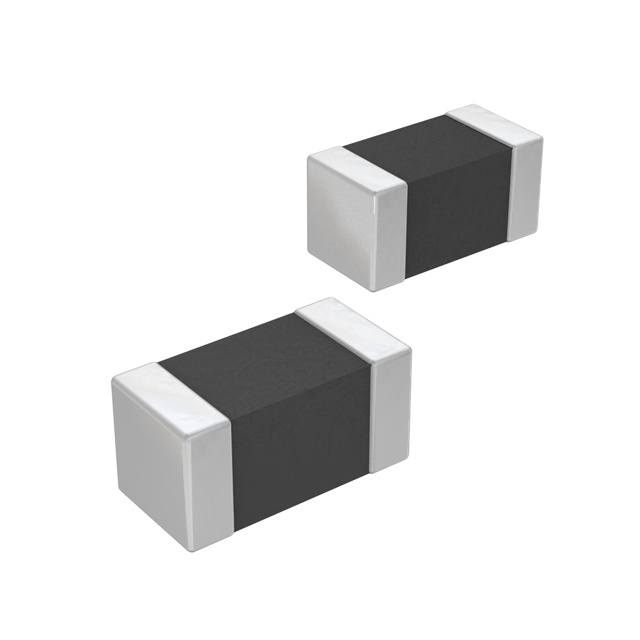

CM100505-22NJL
