Product CatalogPart Number

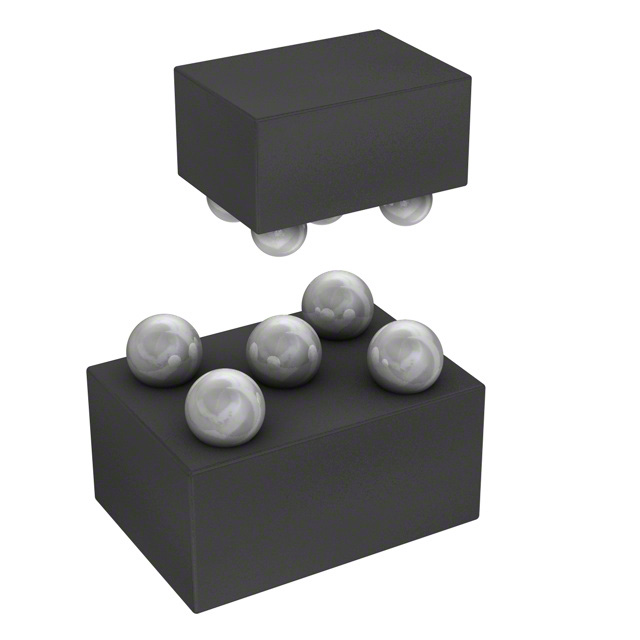

CM1244-04CP
Manufacturer
California Micro DevicesDescription
TVS DIODE 15VC 5WLCSP
Datasheet
DatasheetPackage
5-WFBGA, WLCSP
In Stock
82,985 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CM1244-04CP
CM1244-04CP
lmages are for reference only.Payment Methods
Delivery Services
15V (Typ) Clamp Ipp Tvs Diode Surface Mount 5-WLCSP (0.76x1.05)
Quick Inquiry
CM1244-04CP
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | California Micro Devices |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | - |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 15V (Typ) |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 5-WFBGA, WLCSP |
| Supplier Device Package | 5-WLCSP (0.76x1.05) |
| Base Product Number | CM1244 |
| Unidirectional Channels | 4 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

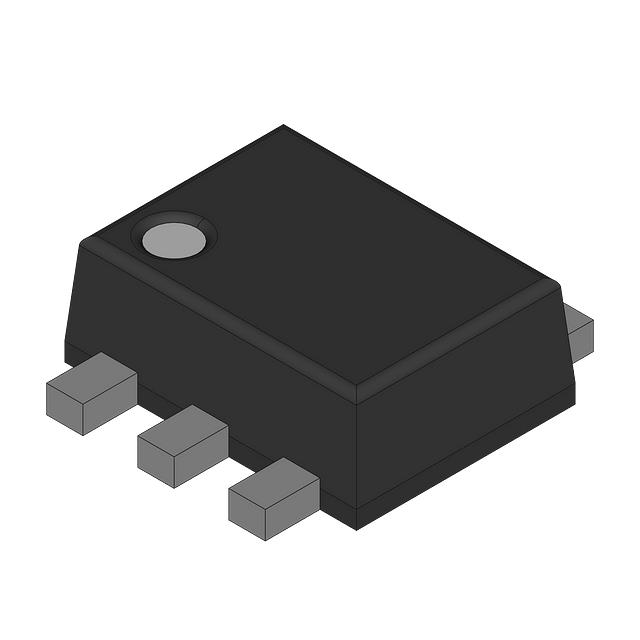

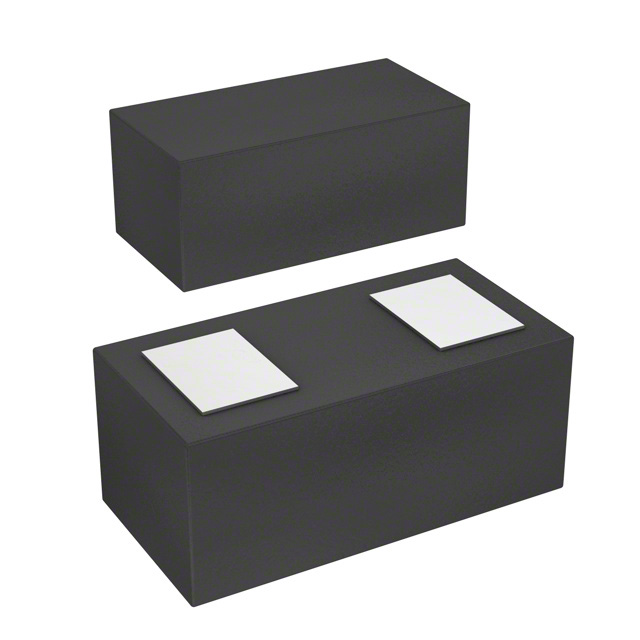

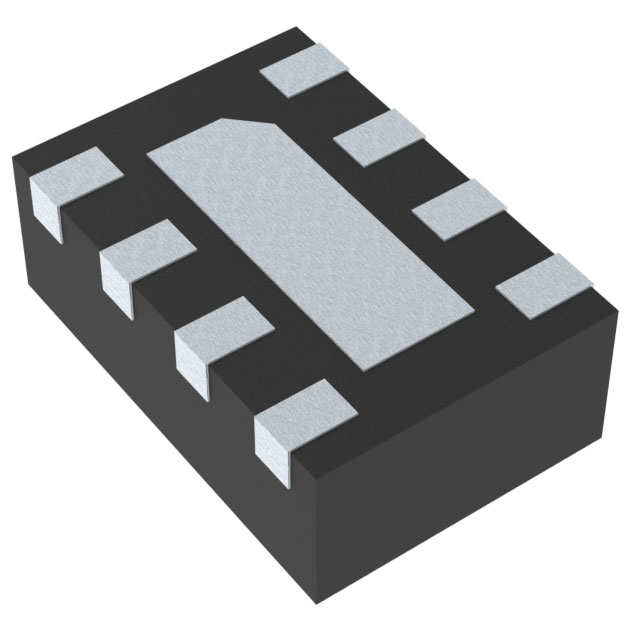

| Part Number | CM1244-04CP | CM1240-F4SE | CM1241-04D4 | CM1242-07CP |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | |||
| Description | TVS DIODE 15VC 5WLCSP | TRANS VOLTAGE SUPPRESSOR DIODE | TVS DIODE 8.2VWM 9.64VC 8-WDFN | TVS DIODE 5VWM 9.8VC 2WLCSP |
| Series | onsemi | onsemi | onsemi | onsemi |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
