CM453232-R12ML

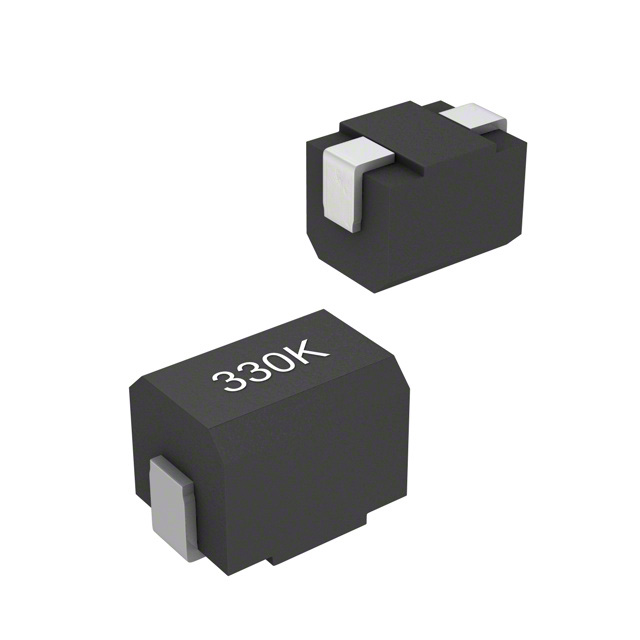

lmages are for reference only.CM453232-R12ML
FIXED IND 120NH 770MA 200MOHM SM
Datasheet1812 (4532 Metric)
82,817 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 nH Unshielded Drum Core, Wirewound Inductor 770 mA 200mOhm Max 1812 (4532 Metric)
CM453232-R12ML
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | CM45 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 120 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 770 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 35 @ 25.2MHz |
| Frequency - Self Resonant | 280MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 25.2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Base Product Number | CM453232 |
| Product Attribute |  |
 |
 |
 |
| Part Number | CM453232-R10KL | CM453232-R12KL | CM453232-R15KL | CM453232-R15ML |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100NH 800MA 180MOHM SM | FIXED IND 120NH 770MA 200MOHM SM | FIXED IND 150NH 730MA 220MOHM SM | FIXED IND 150NH 730MA 220MOHM SM |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
