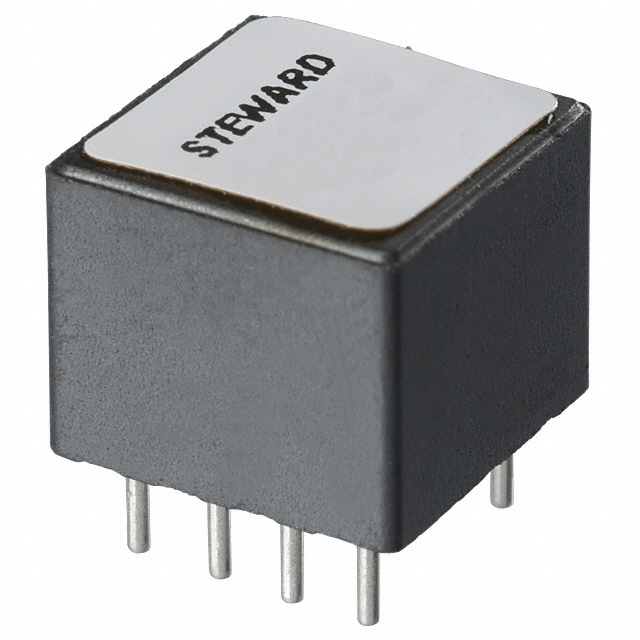

4 Line Common Mode Choke Through Hole 130 Ohms @ 100 MHz 10A DCR 10mOhm
CM4545Z131B-10
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | CM |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 4 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 10A |
| DC Resistance (DCR) (Max) | 10mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.448" L x 0.448" W (11.38mm x 11.38mm) |
| Height (Max) | 0.374" (9.50mm) |
| Package / Case | Vertical, 8 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | 130 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | CM4545Z131B-00 | CM4545Z131R-00 | CM4545Z131R-10 | PL8224T |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | iNRCORE, LLC |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |

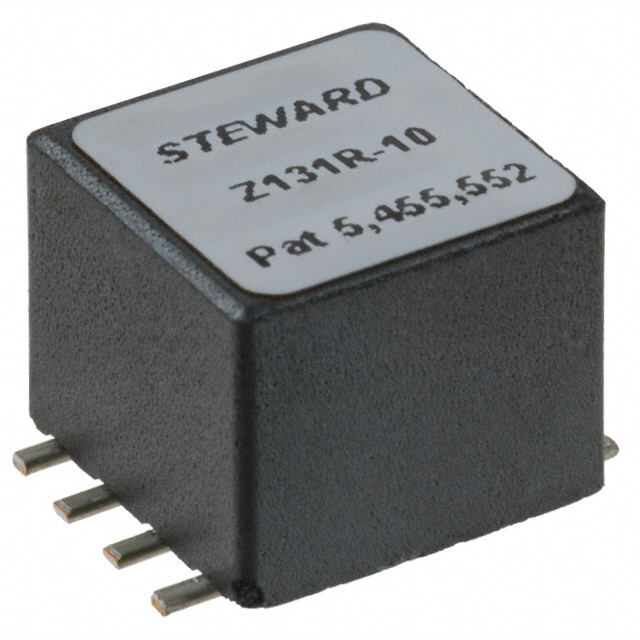

| Description | CMC 10A 4LN 130 OHM TH | CMC 10A 4LN 130 OHM SMD | CMC 10A 4LN 130 OHM SMD | POWER |
| Series | CM | CM | CM | SLIC |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
