CMC 20A 4LN 170 OHM TH
DatasheetVertical, 8 PC Pin
11,557 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4 Line Common Mode Choke Through Hole 170 Ohms @ 100 MHz 20A DCR 1mOhm
CM5740Z171B-00
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | CM |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Filter Type | Power Line |
| Number of Lines | 4 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 20A |
| DC Resistance (DCR) (Max) | 1mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.570" L x 0.395" W (14.48mm x 10.03mm) |
| Height (Max) | 0.367" (9.32mm) |
| Package / Case | Vertical, 8 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | 170 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

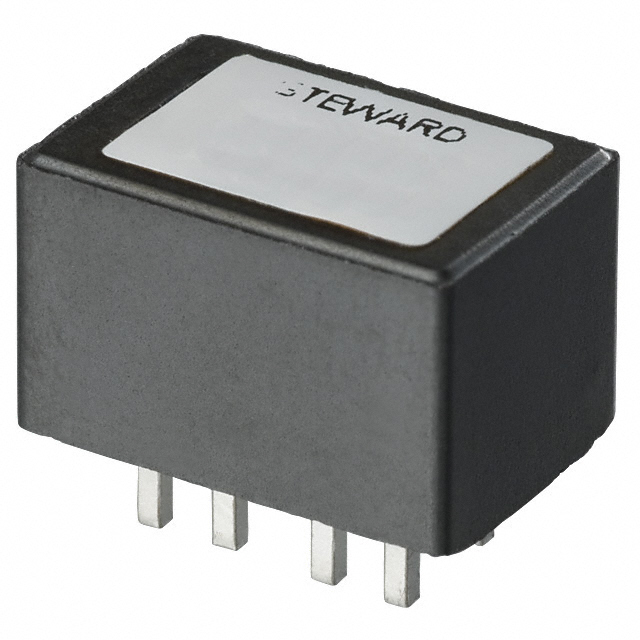

| Part Number | CM5740Z171B-10 | CM5740Z171R-00 | CM5740Z171R-10 | CM5740Z241B-00 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |

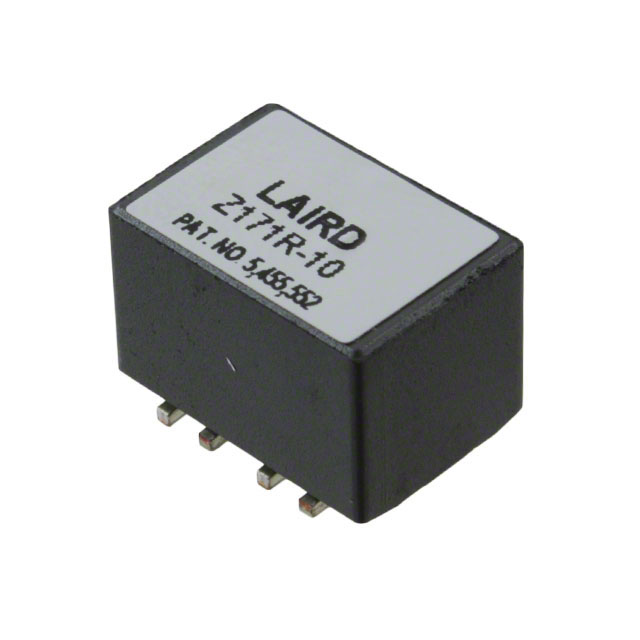

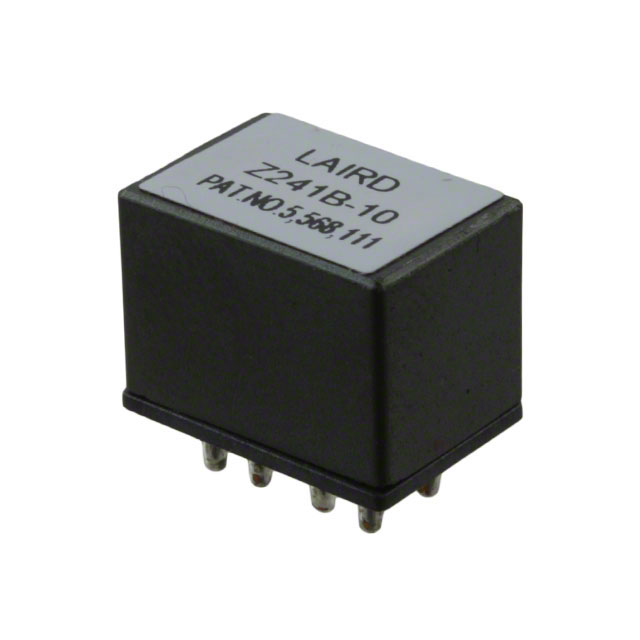

| Description | CMC 20A 4LN 170 OHM TH | CMC 20A 4LN 170 OHM SMD | CMC 20A 4LN 170 OHM SMD | CMC 20A 4LN 100 OHM TH |
| Series | CM | CM | CM | CM |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
