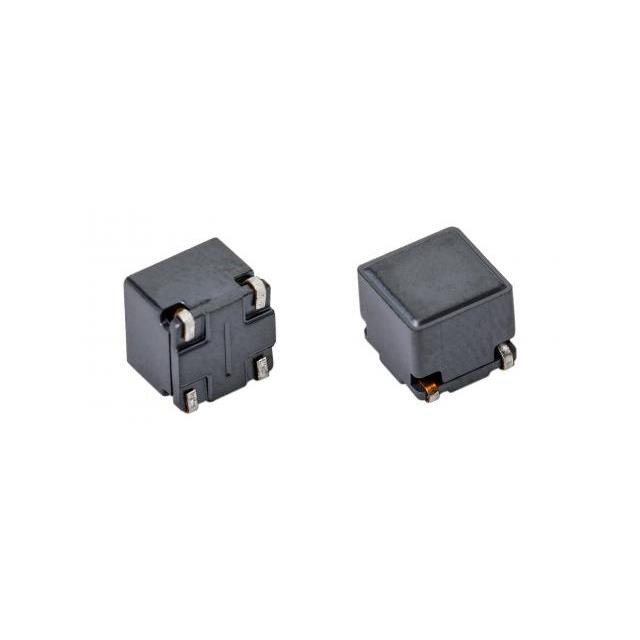

CM6050M301R-10
lmages are for reference only.CM6050M301R-10
CMC 3.7A 2LN 300 OHM SMD
DatasheetNonstandard
91,310 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 300 Ohms @ 10 MHz 3.7A DCR 14.3mOhm
CM6050M301R-10
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | CM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 3.7A |
| DC Resistance (DCR) (Max) | 14.3mOhm |
| Voltage Rating - DC | 80V |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 150°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height (Max) | 0.098" (2.50mm) |
| Package / Case | Nonstandard |
| Base Product Number | - |
| Impedance @ Frequency | 300 Ohms @ 10 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

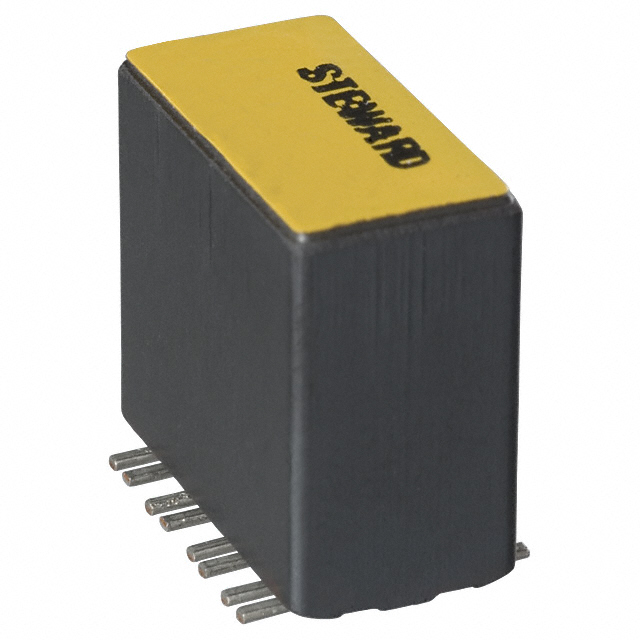

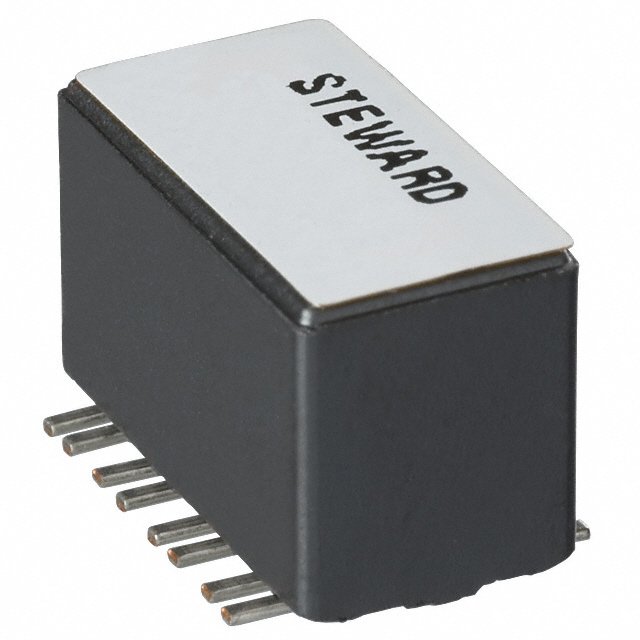

| Part Number | CM6032V201R-00 | CM6032V201R-10 | CM6032V301R-00 | CM6032V301R-10 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | CMC 8A 8LN 200 OHM SMD | CMC 8A 8LN 200 OHM SMD | CMC 8A 8LN 300 OHM SMD | CMC 8A 8LN 300 OHM SMD |
| Series | CM | CM | CM | CM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
