CM7VT1A32.768KHZ125PF20PPMTBQAT3

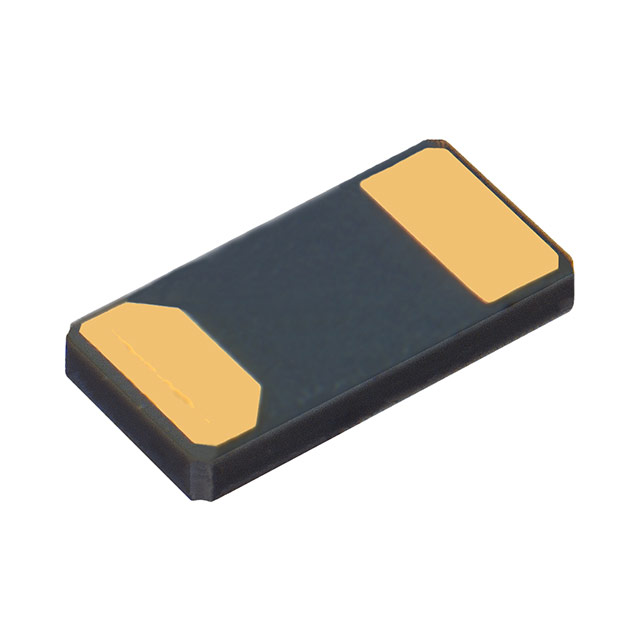

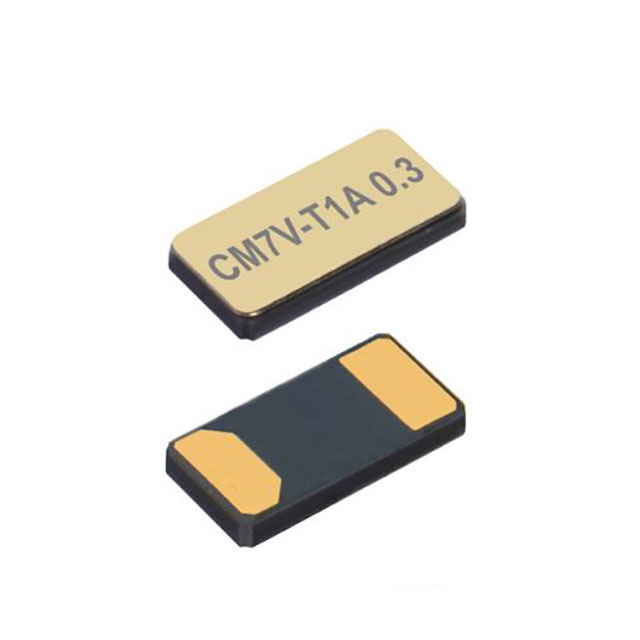

lmages are for reference only.CM7VT1A32.768KHZ125PF20PPMTBQAT3
CRYSTAL 32.7680KHZ 12.5PF SMD
Datasheet2-SMD, No Lead
47,039 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
32.768 kHz ±20ppm Crystal 12.5pF 70 kOhms 2-SMD, No Lead
CM7VT1A32.768KHZ125PF20PPMTBQAT3
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Micro Crystal AG |
| Series | CM7V |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | kHz Crystal (Tuning Fork) |
| Frequency | 32.768 kHz |
| Frequency Stability | - |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 12.5pF |
| ESR (Equivalent Series Resistance) | 70 kOhms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | CM7VT1A32.768KHZ125PF20PPMTBQAT3 | CM7V-T1A-0.3-32.768KHZ-7PF-20PPM-TA-QC | CM7V-T1A-0.3-32.768KHZ-7PF-20PPM-TA-QC | CM7V-T1A-0.3-32.768KHZ-9PF-20PPM-TA-QC |
| Manufacturer | Micro Crystal AG | Micro Crystal AG | Micro Crystal AG | Micro Crystal AG |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 32.7680KHZ 12.5PF SMD | CRYSTAL 32.768KHZ SMD | CRYSTAL 32.768KHZ SMD | CRYSTAL 32.768KHZ SMD |
| Series | Micro Crystal AG | Micro Crystal AG | Micro Crystal AG | Micro Crystal AG |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk | Bulk |
