CMD9322SRVGCTR8

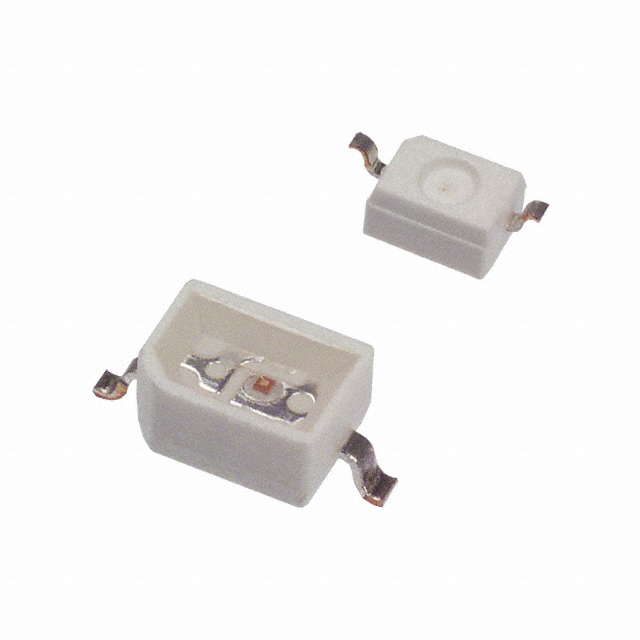

lmages are for reference only.CMD9322SRVGCTR8
LED GRN/RED CLEAR GULL WING SMD
Datasheet4-SMD, Gull Wing
90,298 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green, Red LED Indication - Discrete 2.1V Green, 1.7V Red 4-SMD, Gull Wing
CMD9322SRVGCTR8
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Visual Communications Company - VCC |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Clear |
| Millicandela Rating | 20mcd Green, 40mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.7V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 125° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 570nm Green, 660nm Red |
| Features | - |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | Gull Wing |
| Size / Dimension | 3.40mm L x 2.70mm W |
| Height (Max) | 1.60mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CMD93-21VGC/TR8 | CMD93-21VRC/TR8 | CMD934CB/SGD | LA E67B-V1AA-34-1-50-R18-Z |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN CLEAR GULL WING SMD | LED RED CLEAR GULL WING SMD | LED SMT MINI | LED AMBER CLEAR 4PLCC SMD |
| Series | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
