CMD95-21SRCTR10
lmages are for reference only.CMD95-21SRCTR10
LED RED CLEAR ZBEND SMD
Datasheet2-SMD, Z-Bend
56,860 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red LED Indication - Discrete 1.7V 2-SMD, Z-Bend
CMD95-21SRCTR10
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Visual Communications Company - VCC |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | Standard |
| Lens Color | - |
| Lens Transparency | Clear |
| Millicandela Rating | 100mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 1.70mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Current - Test | - |
| Viewing Angle | 25° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 660nm |
| Features | - |
| Package / Case | 2-SMD, Z-Bend |
| Supplier Device Package | Z-Bend |
| Size / Dimension | 2.20mm L x 2.10mm W |
| Height (Max) | 2.90mm |
| Base Product Number | CMD95-21 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

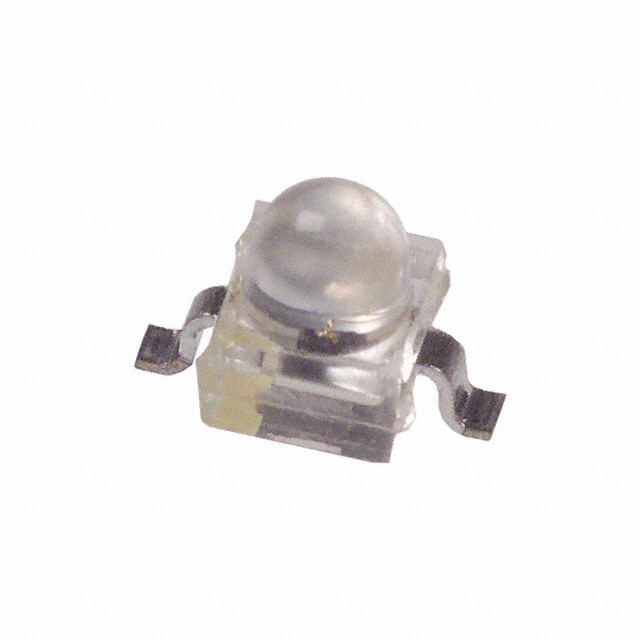

| Part Number | CMD95-21SRC/TR7 | CMD95-21SRC/TR9 | CMD95-21SYGC/TR7 | CMD95-21VGC/TR7 |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED CLEAR GULL WING SMD | LED RED CLEAR YOKE LEAD SMD | LED GREEN CLEAR 2SMD | LED GREEN CLEAR GULL WING SMD |
| Series | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
