CME2425-5-B
Manufacturer
Triad MagneticsDescription
CMC 9.8MH 1A 2LN TH ESD
Datasheet
DatasheetPackage
Vertical, 4 PC Pin
In Stock
82,181 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

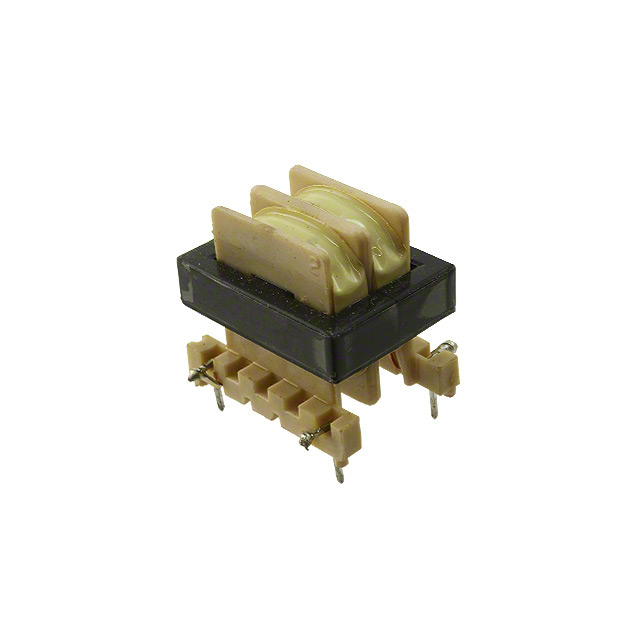

CME2425-5-B
CME2425-5-B
lmages are for reference only.Payment Methods
Delivery Services
9.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1A DCR 319mOhm
Quick Inquiry
CME2425-5-B
Specifications
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Triad Magnetics |
| Series | CME |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 9.8 mH @ 10 kHz |
| Current Rating (Max) | 1A |
| DC Resistance (DCR) (Max) | 319mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 80°C |
| Ratings | - |
| Approval Agency | CSA, IEC, UL, VDE |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.050" L x 1.050" W (26.67mm x 26.67mm) |
| Height (Max) | 1.075" (27.31mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | CME2425-1 | CME2425-1-B | CME2425-2 | CME2425-2-B |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 1.05MH 2.5A 2LN TH ESD | CMC 1.05MH 2.5A 2LN TH ESD | CMC 2.37MH 2A 2LN TH ESD | CMC 2.37MH 2A 2LN TH ESD |
| Series | CME | CME | CME | CME |
| Packaging | Bulk | Bulk | Bulk | Bulk |
