CMF23H-103231

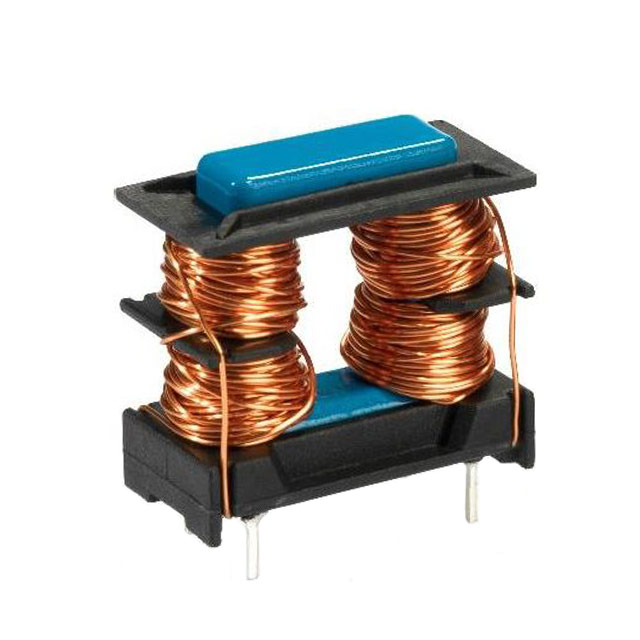

lmages are for reference only.CMF23H-103231
COMMON MODE INDUCTOR - L = 10MH
DatasheetHorizontal, 4 PC Pin
29,420 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2.3A DCR 210mOhm
CMF23H-103231
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Triad Magnetics |
| Series | CMF |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | - |
| Number of Lines | 2 |
| Inductance @ Frequency | 10 mH @ 10 kHz |
| Current Rating (Max) | 2.3A |
| DC Resistance (DCR) (Max) | 210mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.043" L x 0.976" W (26.50mm x 24.80mm) |
| Height (Max) | 0.551" (14.00mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | CMF23H-103231-B | CMF23H-104700 | CMF23H-104700-B | CMF23H-153191 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 10MH 2.3A 2LN TH | COMMON MODE INDUCTOR - L = 100MH | CMC 100MH 700MA 2LN TH | COMMON MODE INDUCTOR - L = 15MH |
| Series | CMF | CMF | CMF | CMF |
| Packaging | Bulk | Bulk | Bulk | Bulk |
