CML0306-22N-HNH

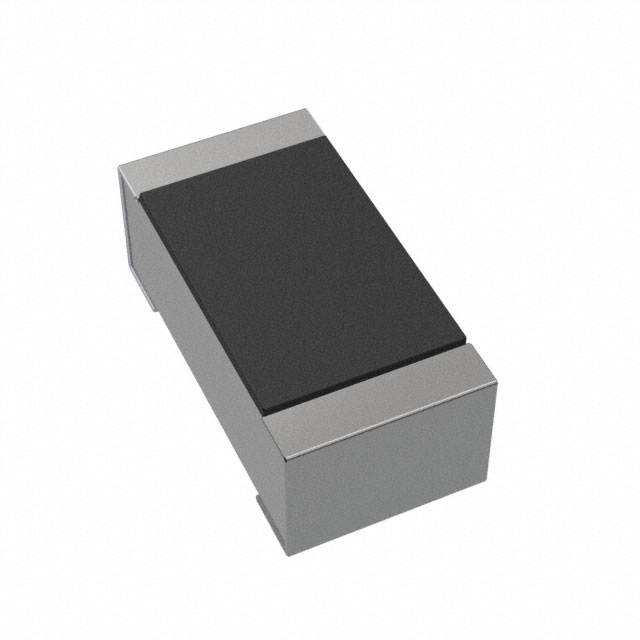

lmages are for reference only.CML0306-22N-HNH
FIXED IND 22NH 120MA 2.55OHM SMD
Datasheet0201 (0603 Metric)
28,696 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 nH Shielded Thin Film Inductor 120 mA 2.55Ohm Max 0201 (0603 Metric)
CML0306-22N-HNH
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | CML0306 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Thin Film |
| Material - Core | - |
| Inductance | 22 nH |
| Tolerance | ±3% |
| Current Rating (Amps) | 120 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.55Ohm Max |
| Q @ Freq | 4 @ 100MHz |
| Frequency - Self Resonant | 2.8GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.61mm x 0.31mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CML0306-22N-JNH | CML0306-2N2-BNH | CML0306-2N4-BNH | CML0306-2N4-CNH |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FIXED IND 22NH 120MA 2.55OHM SMD | FIXED IND 2.2NH 620MA 200MOHM SM | FIXED IND 2.4NH 500MA 200MOHM SM | FIXED IND 2.4NH 500MA 200MOHM SM |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
