CML0510-5N6-BNH

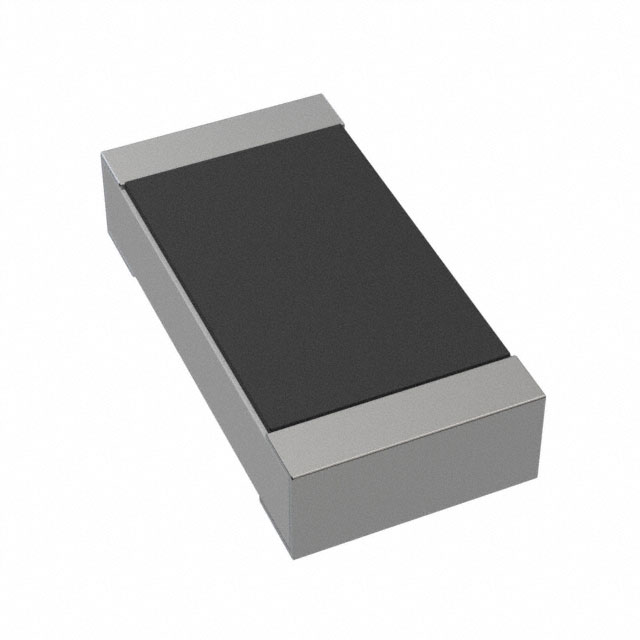

lmages are for reference only.CML0510-5N6-BNH
FIXED IND 5.6NH 330MA 500MOHM SM
Datasheet0402 (1005 Metric)
23,390 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.6 nH Shielded Thin Film Inductor 330 mA 500mOhm Max 0402 (1005 Metric)
CML0510-5N6-BNH
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | CML0510 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Thin Film |
| Material - Core | - |
| Inductance | 5.6 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 330 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 500mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 6.5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.020" (0.50mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | CML0510-5N6-BNH | CML0510-5N6-CNH | CML0510-10N-HNH | CML0510-12N-GNH |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FIXED IND 5.6NH 330MA 500MOHM SM | FIXED IND 5.6NH 330MA 500MOHM SM | FIXED IND 10NH 200MA 1 OHM SMD | FIXED IND 12NH 190MA 1.8 OHM SMD |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
