Product CatalogPart Number
CMT908-H2
Manufacturer
Triad MagneticsDescription
CMC 4MH 5.2A 2LN TH ESD
Datasheet
DatasheetPackage
Horizontal, 4 PC Pin
In Stock
46,972 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CMT908-H2
CMT908-H2
lmages are for reference only.Payment Methods
Delivery Services
4 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 5.2A DCR 40mOhm
Quick Inquiry
CMT908-H2
Specifications
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Triad Magnetics |
| Series | CMT |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 4 mH @ 10 kHz |
| Current Rating (Max) | 5.2A |
| DC Resistance (DCR) (Max) | 40mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | - |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.500" L x 1.500" W (38.10mm x 38.10mm) |
| Height (Max) | 0.800" (20.32mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | CMT908-H1 | CMT908-H1-B | CMT908-H2-B | CMT908-H3 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 2MH 7.5A 2LN TH ESD | CMC 2MH 7.5A 2LN TH ESD | CMC 4MH 5.2A 2LN TH ESD | CMC 8MH 3.2A 2LN TH ESD |
| Series | CMT | CMT | CMT | CMT |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
CMT908-H1
Triad Magnetics
CMT908-H1-B
Triad Magnetics
CMT908-H2-B
Triad Magnetics
CMT908-H3
Triad Magnetics
CMT908-H3-B
Triad Magnetics

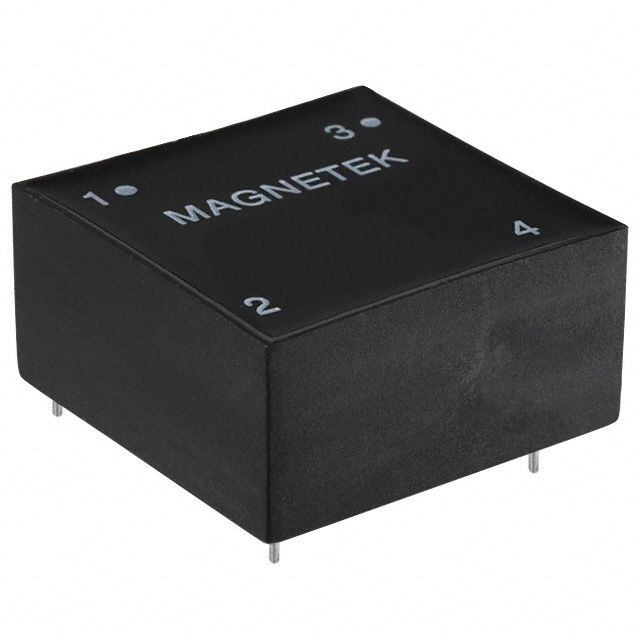

CMT908-H4
Triad Magnetics

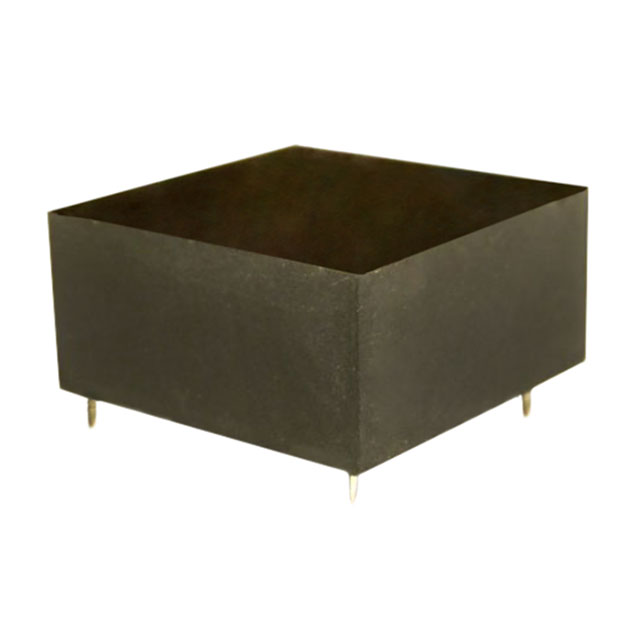

CMT908-H4-B
Triad Magnetics
CMT908-V1
Triad Magnetics
CMT908-V2
Triad Magnetics

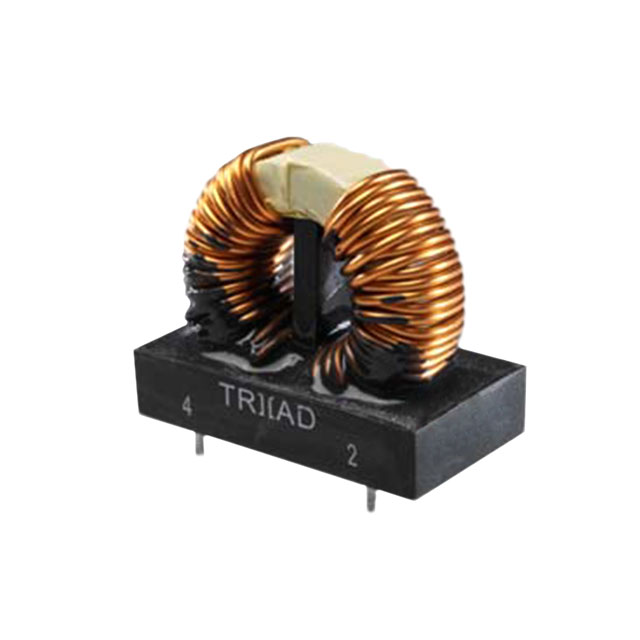

CMT908-V2-B
