CMX1616Z171B-10
lmages are for reference only.CMX1616Z171B-10
CMC 176UH 62A 2LN TH
DatasheetHorizontal, 4 PC Pin
48,145 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
176 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 62A DCR 0.65mOhm

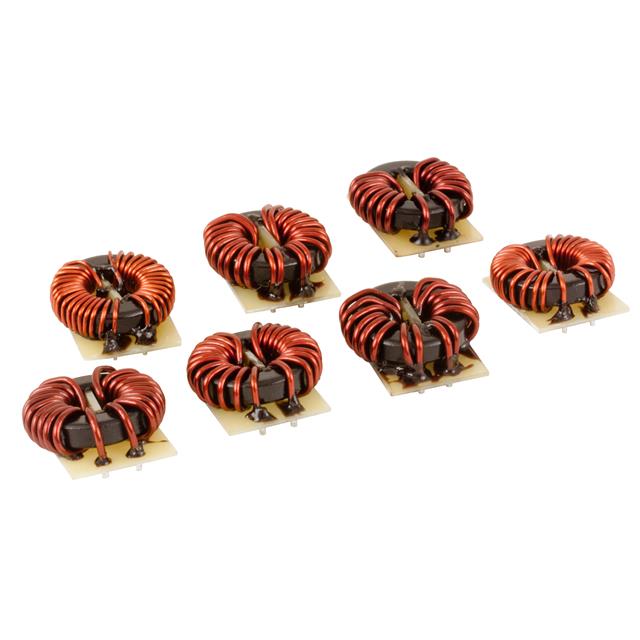

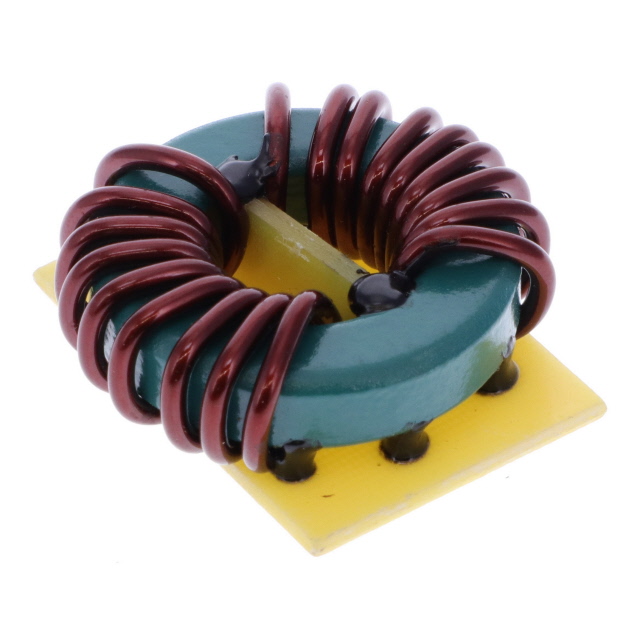

CMX1616Z171B-10
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | CMX1616 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 176 µH @ 100 kHz |
| Current Rating (Max) | 62A |
| DC Resistance (DCR) (Max) | 0.65mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.614" L x 1.614" W (41.00mm x 41.00mm) |
| Height (Max) | 0.650" (16.50mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CMX1616Z112B-10 | CMX1616Z162B-10 | CMX1616X282B-10 | CMX1616Y222B-10 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 1MH 30A 2LN TH | CMC 1.584MH 24A 2LN TH | CMC 2.816MH 14A 2LN TH | CMC 2.156MH 19A 2LN TH |
| Series | CMX1616 | CMX1616 | CMX1616 | CMX1616 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
