Product CatalogPart Number
CN200B110-12/LC
Manufacturer
TDK-LambdaDescription
DC-DC, PCB MOUNT, HALF BRICK, IN
Datasheet
DatasheetPackage
Half Brick
In Stock
46,404 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CN200B110-12/LC
CN200B110-12/LC
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 16.7A 43V - 160V Input
Quick Inquiry
CN200B110-12/LC
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | TDK-Lambda |
| Series | CN-B110 (200W) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 43V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 16.7A |
| Power (Watts) | 200 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Baseplate, Load Sharing, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Supplier Device Package | Half Brick |
| Control Features | Enable, Active Low |
| Approval Agency | CE, UKCA |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | CN200B110-12 | CN200B110-12/AUX | CN200B110-12/CO | CN200B110-12/T |
| Manufacturer | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC-DC, PCB MOUNT, HALF BRICK, IN | DC-DC, PCB MOUNT, HALF BRICK, IN | DC-DC, PCB MOUNT, HALF BRICK, IN | DC-DC, PCB MOUNT, HALF BRICK, IN |
| Series | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
CN200A110-12
TDK-Lambda

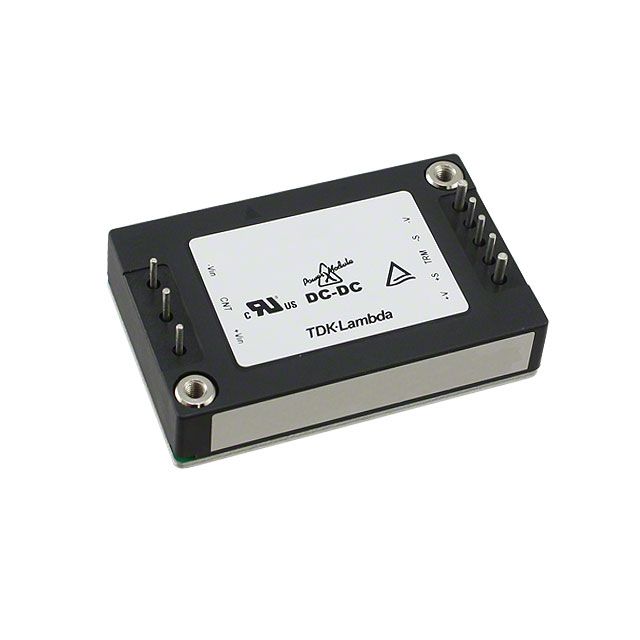

CN200A110-15
TDK-Lambda
CN200A110-24
TDK-Lambda
CN200A110-5
TDK-Lambda
CN200B110-12
TDK-Lambda
CN200B110-12/AUX
TDK-Lambda
CN200B110-12/CO
TDK-Lambda
CN200B110-12/T
TDK-Lambda
CN200B110-13.8
TDK-Lambda
CN200B110-13.8/AUX
TDK-Lambda
CN200B110-13.8/CO
TDK-Lambda

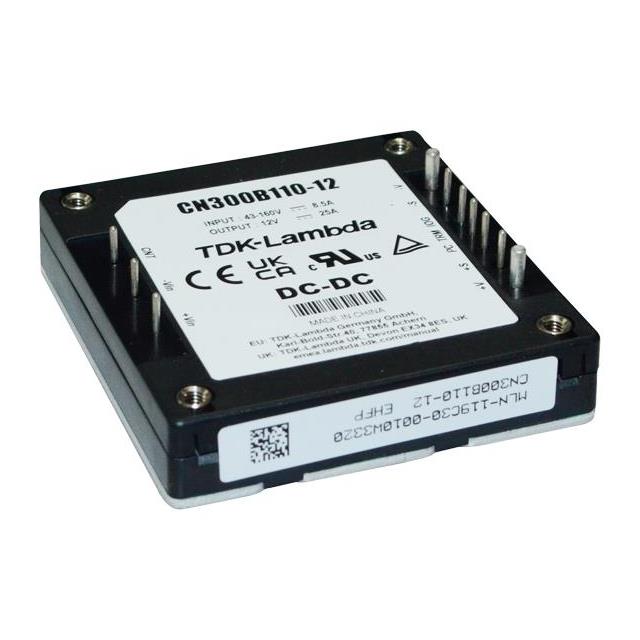

CN200B110-13.8/LC
