CNA1006N
lmages are for reference only.CNA1006N
SENSOR OPT SLOT PHOTOTRAN PCB MT
DatasheetPCB Mount
85,478 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optical Sensor Through-Beam 0.118" (3mm) Phototransistor PCB Mount
CNA1006N
| Category | Sensors, Transducers - Optical Sensors - Photointerrupters Slot Type Transistor Output |
| Manufacturer | Panasonic Electronic Components |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Sensing Distance | 0.118" (3mm) |
| Sensing Method | Through-Beam |
| Output Configuration | Phototransistor |
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Response Time | 5µs, 5µs |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | PCB Mount |
| Type | Unamplified |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

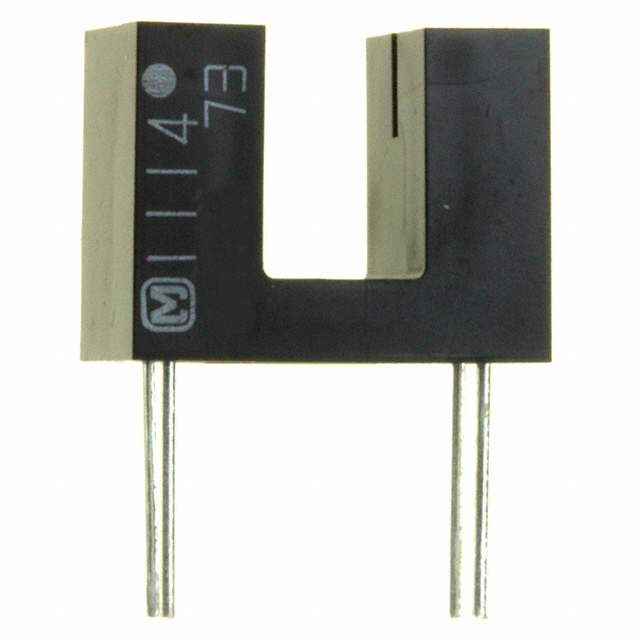

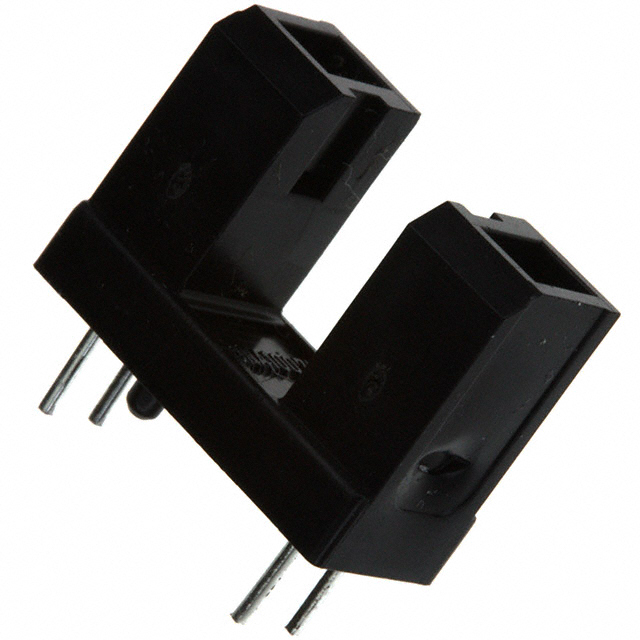

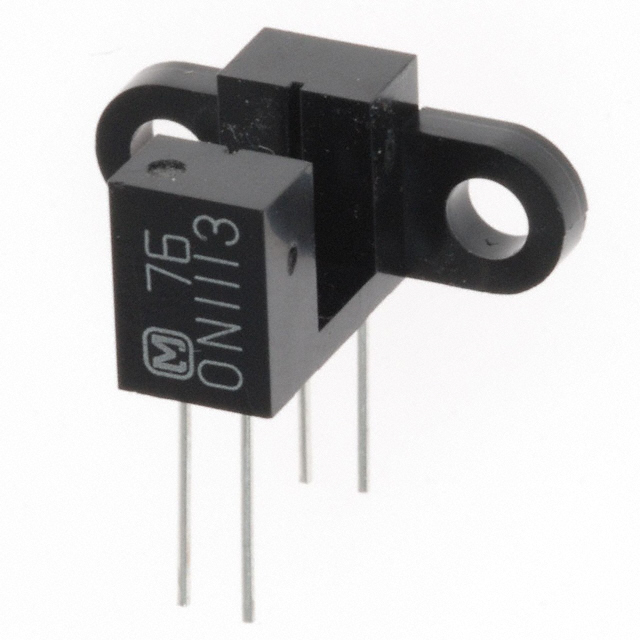

| Part Number | CNA1007H | CNA1011K | CNA1012K | CNA1311K0TLC |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ||||
| Description | SENSOR OPT SLOT PHOTOTRAN PCB MT | SENSOR OPT SLOT PHOTOTRAN PCB MT | SENSOR OPT SLOT PHOTOTRAN PCB MT | SENSOR OPT SLOT PHOTOTRAN PCB MT |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
