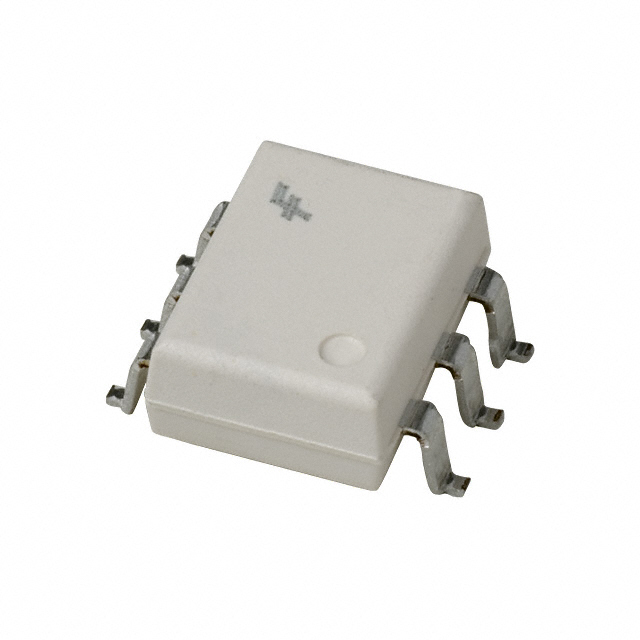

Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD
CNY172SR2M
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Fairchild Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Number of Channels | 1 |
| Voltage - Isolation | 4170Vrms |
| Current Transfer Ratio (Min) | 63% @ 10mA |
| Current Transfer Ratio (Max) | 125% @ 10mA |
| Turn On / Turn Off Time (Typ) | 2µs, 3µs |
| Rise / Fall Time (Typ) | 4µs, 3.5µs (Max) |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | CNY172SR2M | CNY172SR2VM | CNY172S | CNY172SD |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | OPTOISO 4.17KV TRANS W/BASE 6SMD | OPTOISO 4.17KV TRANS W/BASE 6SMD | OPTOISO 5.3KV TRANS W/BASE 6SMD | OPTOISO 5.3KV TRANS W/BASE 6SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR) |
