CNY64

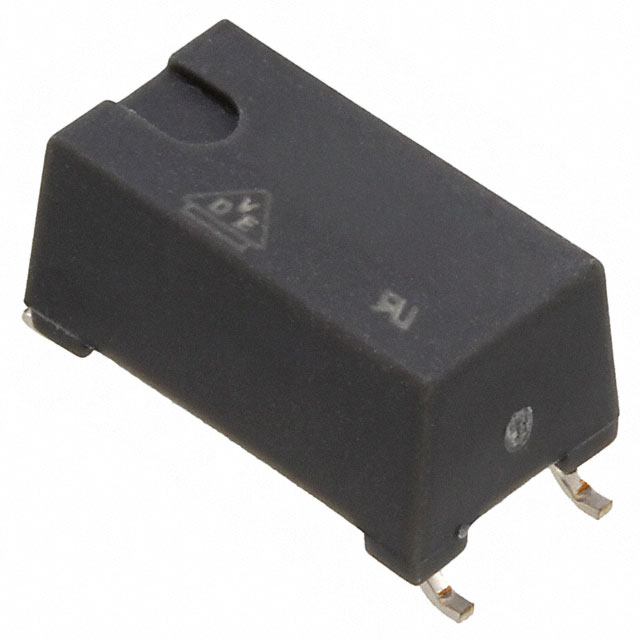

lmages are for reference only.CNY64
OPTOISOLATOR 8.2KV TRANS 4-DIP
Datasheet4-DIP (0.200", 5.08mm)
26,367 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 8200Vrms 1 Channel 4-DIP
CNY64
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 8200Vrms |
| Current Transfer Ratio (Min) | 50% @ 10mA |
| Current Transfer Ratio (Max) | 300% @ 10mA |
| Turn On / Turn Off Time (Typ) | 5µs, 3µs |
| Rise / Fall Time (Typ) | 2.4µs, 2.7µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 32V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 75 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.200", 5.08mm) |
| Supplier Device Package | 4-DIP |
| Base Product Number | CNY64 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CNY64A | CNY64ABST | CNY64AGRST | CNY64AYST |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISOLATOR 8.2KV TRANS 4-DIP | OPTOISOLATOR 8.2KV TRANS 4-SMD | OPTOISOLATOR 8.2KV TRANS 4-SMD | OPTOISOLATOR 8.2KV TRANS 4-SMD |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
