CP2102N-A02-GQFN24

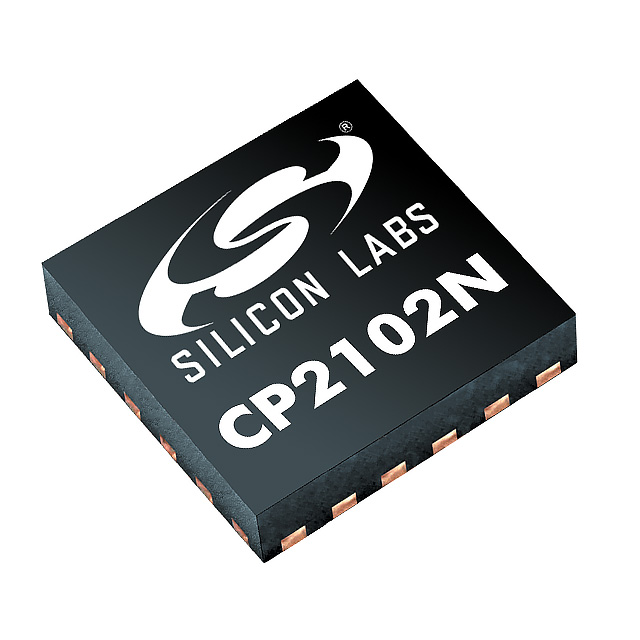

lmages are for reference only.CP2102N-A02-GQFN24
IC USB TO UART BRIDGE QFN24
Datasheet24-VFQFN Exposed Pad
75,676 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB Bridge, USB to UART USB 2.0 UART Interface 24-QFN (4x4)
CP2102N-A02-GQFN24
| Category | Integrated Circuits (ICs) - Interface - Controllers |
| Manufacturer | Silicon Labs |
| Series | USBXpress™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Protocol | USB |
| Function | Bridge, USB to UART |
| Interface | UART |
| Standards | USB 2.0 |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Supply | 9.5mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) |
| Base Product Number | CP2102 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

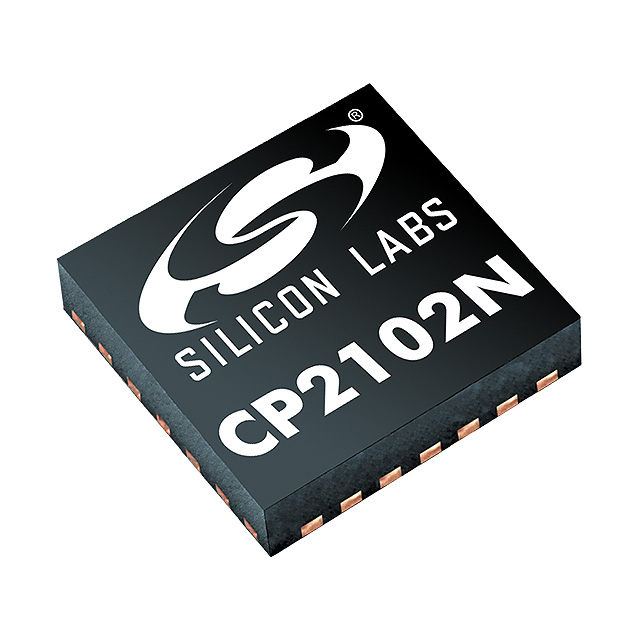

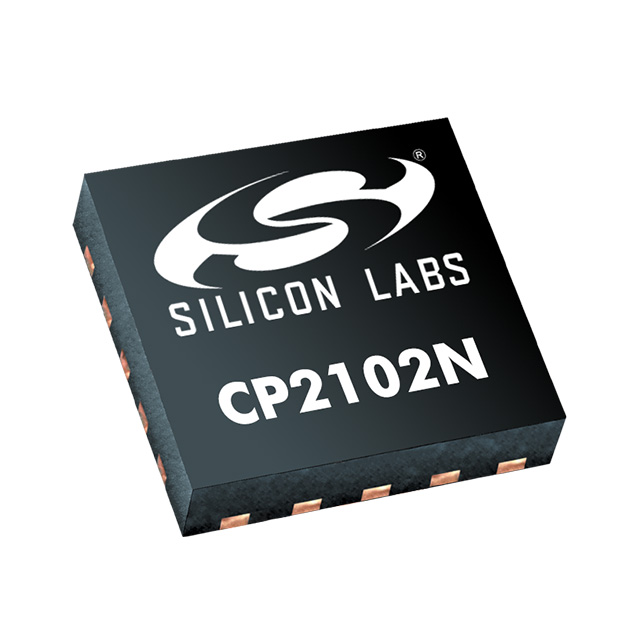

| Part Number | CP2102N-A02-GQFN20 | CP2102N-A02-GQFN20R | CP2102N-A02-GQFN24R | CP2102N-A02-GQFN28 |
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC USB TO UART BRIDGE QFN20 | IC USB TO UART BRIDGE QFN20 | IC USB TO UART BRIDGE QFN24 | IC USB TO UART BRIDGE QFN28 |
| Series | USBXpress™ | USBXpress™ | USBXpress™ | USBXpress™ |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
